Titanium Anode for Ammonia Nitrogen Wastewater Treatment with Chlorine Evolution for Ammonia Removal from High-Salinity Complex Leachate

Landfill leachate is rich in high concentrations of ammonia nitrogen and various inorganic salts, making it difficult for conventional biological treatment systems to operate stably under high-salinity and toxicity inhibition conditions. As landfill age increases, the proportion of humic substances and recalcitrant organics in the leachate continues to rise, further intensifying treatment difficulty. Electrochemical oxidation technology, through in-situ generation of active chlorine on the anode surface, can utilize the inherent chloride ions in leachate to achieve oxidative removal of ammonia nitrogen, with the titanium anode for ammonia nitrogen wastewater treatment serving as its core component.





Chlorine Evolution for Ammonia Nitrogen Removal: An In-Situ Oxidation Pathway Utilizing Leachate Salinity

The treatment challenge of aged leachate lies in its dual characteristics of high ammonia nitrogen and high salinity. Biological methods require external carbon source supplementation to maintain denitrification, and high salinity inhibits microbial activity, leading to decreased system treatment efficiency. Electrochemical chlorine evolution for ammonia nitrogen removal utilizes the leachate's own chloride ion resources—the anode oxidizes chloride ions into active chlorine when energized, which then reacts with ammonia nitrogen to progressively convert it into nitrogen gas, achieving selective removal of ammonia nitrogen.



The coating formulation of the titanium anode for ammonia nitrogen wastewater treatment is optimized for the chlorine evolution reaction. The RuO₂ component exhibits a relatively low overpotential for chlorine evolution, contributing to maintaining high chlorine evolution current efficiency in high-salinity environments. The introduction of IrO₂ is designed to enhance the electrochemical stability of the coating during long-term operation, delaying activity decay. Under typical leachate operating conditions, the anode can efficiently convert chloride ions into active chlorine, enabling ammonia nitrogen to be oxidized to nitrogen gas through the breakpoint chlorination pathway. Simultaneously, hydroxyl radicals generated on the anode surface can assist in degrading some of the recalcitrant organics in the leachate. This process can proceed at ambient temperature and pressure without the need for external chemical oxidants, with the high salinity instead providing an abundant source of chloride ions for the chlorine evolution reaction. Actual ammonia nitrogen removal efficiency varies depending on leachate chloride ion concentration, ammonia nitrogen loading, pH, and current density.

Performance varies based on specific operating conditions. Actual results depend on leachate composition and operating parameters.



​​​​​​​



High-Salt Corrosion Resistance: Electrode Design Adapted to Complex Leachate Water Matrices

Aged leachate contains not only high concentrations of chloride ions but also various metal ions and humic complexes. Anodes operating long-term in such composite water quality face the risk of coating active site fouling caused by organic adsorption, as well as chemical corrosion of the substrate in the acidic chlorine evolution environment. The high conductivity of leachate subjects the electrode to relatively high current loading during electrolysis, placing elevated demands on the electrochemical stability of the coating.



The titanium anode for ammonia nitrogen wastewater treatment employs high-purity titanium as the substrate. The titanium substrate can form a dense passive film under anodic polarization conditions in high-salinity environments, helping to suppress electrochemical dissolution of the substrate itself and providing a stable supporting platform for the coating. The coating adopts an electrocatalytic active layer containing metal oxides such as RuO₂ and IrO₂, with high bonding strength between the coating and substrate achieved through optimized pretreatment processes, supporting the maintenance of structural integrity during long-term operation. The coating thickness has been optimized to balance chlorine evolution activity with anti-fouling and durability. This electrode can provide an extended working life under appropriate operating conditions, with actual performance varying depending on leachate composition, salinity, temperature, and operating mode.





Engineering Value for the Leachate Treatment Market

In the global landfill operation market, compliant leachate treatment is a core component of environmental management. The engineering value of the titanium anode for ammonia nitrogen wastewater treatment in this market lies in utilizing the leachate's own chloride ion resources to drive the chlorine evolution reaction, simultaneously achieving ammonia nitrogen removal and auxiliary organic degradation, and supporting landfill sites in addressing the treatment challenges of high-salinity complex water quality with a relatively compact process flow.

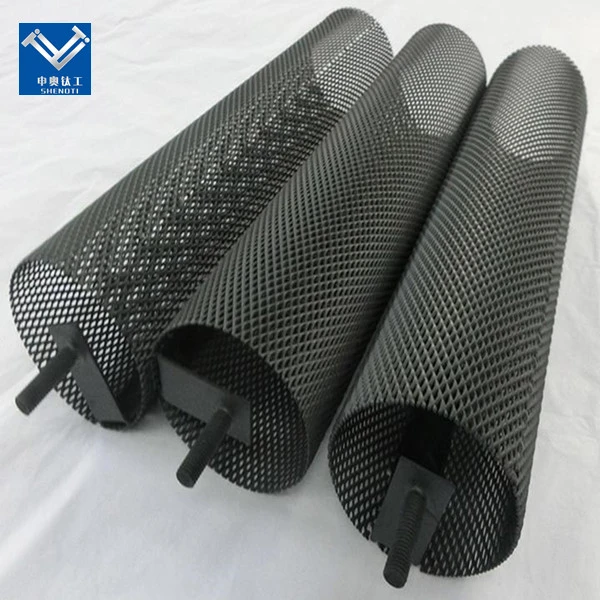

These titanium anode products are built on high-purity titanium substrates and coated with metal oxide systems such as RuO₂ and IrO₂, and can be customized into plate, mesh, tubular, and other geometric configurations to suit leachate electrochemical treatment devices of different scales. It is recommended that landfill operators and environmental engineering firms conduct field condition testing of titanium anodes for ammonia nitrogen wastewater treatment based on their leachate ammonia nitrogen concentration, chloride ion content, and water quality characteristics. By tracking indicators such as ammonia nitrogen removal rate, total nitrogen reduction effectiveness, unit energy consumption, and long-term anode operating performance, the technical compatibility and operational reliability of the electrochemical ammonia nitrogen removal solution in specific application scenarios can be evaluated.





Important Note: The performance descriptions above are based on engineering experience under specific test conditions or internal test data. Differences may exist between laboratory results and actual operating conditions. Actual ammonia nitrogen removal efficiency, working life, and energy consumption levels vary depending on leachate chloride ion concentration, ammonia nitrogen loading, organic composition, temperature, current density, operating parameters, and system design. This product is an industrial wastewater treatment equipment component, and its suitability for leachate treatment must be verified by the user according to local environmental regulations and discharge standards. Sufficient compatibility validation prior to bulk procurement is recommended.
