How MMO Titanium Electrodes Improve Water Treatment Efficiency

Electrochemical water treatment technology is used for industrial wastewater purification, disinfection, and pollutant degradation. Among various electrochemical materials, MMO titanium electrodes are widely recognized for their high catalytic performance, strong corrosion resistance, and long service life.

MMO titanium electrodes enhance electrochemical reactions, reduce energy consumption, and ensure long-term stable operation in harsh environments, thereby improving water treatment efficiency.

What is an MMO Titanium Electrode?

An MMO titanium electrode is a size-stabilized anode (DSA). It is manufactured by coating a titanium substrate with a mixture of metal oxides, such as:

Ruthenium oxide (RuO₂)

Iridium oxide (IrO₂)

Tantalum oxide (Ta₂O₅)

Platinum group metal oxides

The titanium substrate has high mechanical strength and strong corrosion resistance, and the MMO catalytic coating promotes the electrochemical oxidation reaction in the water treatment process.

Compared to traditional graphite or lead electrodes, MMO titanium electrodes operate with electrochemical stability.

Working Principle of MMO Titanium Electrodes in Water Treatment

In the electrochemical water treatment process, the MMO titanium electrode serves as the anode in the electrolysis system.

The electrochemical process mainly includes:

Oxidation reaction on the anode surface

Generation of strong oxidizing substances

Decomposition of organic pollutants

Removal of bacteria and microorganisms

Reduction of COD, ammonia nitrogen, and chromatic pollutants

On the anode surface, the MMO coating reduces the oxygen evolution overpotential and improves electron transfer efficiency.

Main reactions include:

Oxygen evolution reaction

2H₂O→O₂+4H+4e-

Hydroxyl Radical Formation

H₂O→·OH+H+e-

Hydroxyl radicals are highly active oxidants, degrading complex organic pollutants in wastewater.

How MMO titanium electrodes improve water treatment efficiency

1. High electrochemical catalytic activity

The MMO coating improves the catalytic efficiency during electrolysis.

Compared to traditional electrodes:

Low electrochemical overpotential

Fast oxidation reaction

High current efficiency

Highly efficient pollutant degradation

Fast industrial wastewater treatment speed, reducing overall energy consumption.

2. Corrosion Resistance

Industrial wastewater typically contains:

Chlorides

Acids

Alkalis
Heavy metals

Organic solvents

Even in highly corrosive electrolytes, the MMO titanium electrode maintains stable performance.

A stable oxide film forms on the titanium substrate, protecting the electrode from chemical corrosion and extending its service life.

3. Reduced Energy Consumption

The MMO titanium electrode has a low oxygen evolution overpotential.

The relationship between voltage and energy consumption can be expressed as:

P=UI

Where:

P = Power consumption

U = Battery voltage

I = Current

By reducing the electrolysis voltage, the MMO electrode reduces the operating energy consumption of the water treatment system.

This is especially important for large-scale industrial wastewater treatment plants operating continuously.

4. Improved Pollutant Removal Efficiency

MMO titanium electrodes exhibit high efficiency in removing the following pollutants:

Chemical Oxygen Demand (COD)

Biochemical Oxygen Demand (BOD)

Ammonia Nitrogen

Phenolics

Cyanide

Organic Dyes

Pathogenic Microorganisms

The strong oxidizing power generated by the electrochemical reaction improves treatment speed and purification efficiency.

5. Long Service Life

Traditional graphite electrodes suffer from the following problems:

Electrode wear

Structural degradation

Frequent replacement

MMO titanium electrodes are dimensionally stable anodes with long-term operational stability.

Service life is:

2-5 years

Depending on current density and electrolyte conditions

Longer service life reduces:

Maintenance costs

Downtime

Replacement frequency

6. Stable Current Distribution

The MMO-coated electrode surface achieves a uniform current distribution.

This improves:

Consistency of electrochemical reactions

Uniformity of treatment

Oxidation efficiency

Uniform current distribution minimizes localized overheating and coating damage.

Advantages of MMO Titanium Electrodes Compared to Traditional Electrodes

Property	MMO Titanium Electrode	Graphite Electrode
Corrosion Resistance	Excellent	Moderate
Service Life	Long	Short
Current Efficiency	High	Lower
Mechanical Strength	High	Fragile
Energy Consumption	Lower	Higher
Maintenance Frequency	Low	High

MMO titanium electrodes have gradually replaced traditional electrode materials in numerous industrial applications.

Main Applications in Water Treatment

Industrial Wastewater Treatment

Used to treat wastewater from the following industries:

Chemical Plants

Textile Mills

Pharmaceutical Plants

Electroplating Plants

Municipal Wastewater Treatment

MMO titanium electrodes help reduce:

Chemical Oxygen Demand (COD)

Pathogens

Suspended Pollutants

Electrochemical Disinfection

Generates oxidizing substances, killing bacteria and viruses without the need for excessive chemical reagents.

Seawater Electrolysis

MMO coatings resist chloride corrosion in seawater desalination and electrolysis systems.

Swimming Pool Water Treatment

Electrochemical disinfection systems using MMO titanium electrodes provide stable chlorine generation and water purification effects.

Factors Affecting Water Treatment Efficiency

Several operating parameters affect the performance of MMO titanium electrodes.

Current Density

Higher current densities can increase the oxidation rate, but excessively high current densities may shorten the coating life.

Range:

500–8000 A/m²

Electrolyte Composition

Different electrolytes affect:

Oxidation Reaction

Conductivity

Coating Stability

Temperature

Higher operating temperatures may accelerate coating degradation.

Most systems operate below:

85℃

Electrode Spacing

Optimized electrode spacing can reduce resistance and improve current efficiency.

How to Choose an MMO Titanium Electrode for Water Treatment

Suitable electrode selection depends on:

Wastewater Composition

Current Density

Chloride Concentration

Operating Temperature

Treatment Objectives

Common coating recommendations include:

Application	Recommended Coating
Chlorine evolution	Ru-Ir
Oxygen evolution	Ir-Ta
High conductivity	Platinum

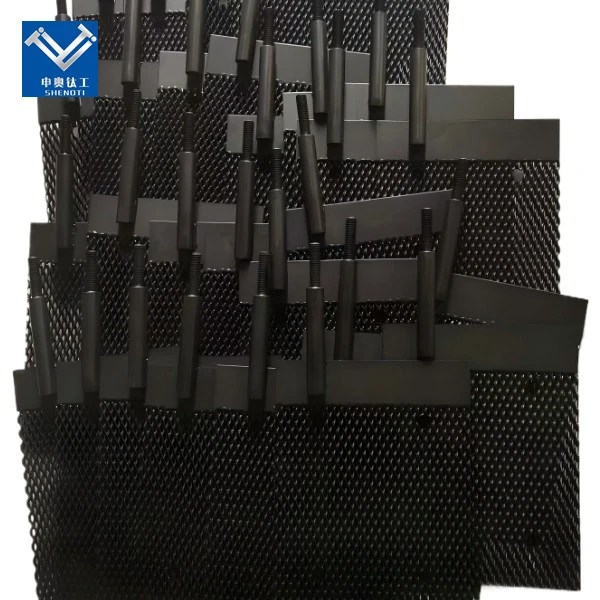

Custom electrode structures are available:

Mesh

Plate

Tube

Rod

Disc

Future Development of MMO Titanium Electrodes

With increasingly stringent environmental regulations, electrochemical water treatment technology continues to develop globally.

Future development trends include:

Coatings with higher catalytic activity

Lower energy consumption

Nanostructured catalytic layers

Intelligent electrochemical systems

Green hydrogen energy integration

MMO titanium electrodes will continue to play a crucial role in sustainable water treatment technologies.

MMO titanium electrodes offer high electrochemical catalytic performance, strong corrosion resistance, and long-term operational stability, improving water treatment efficiency.

They can reduce energy consumption, enhance pollutant degradation, and operate reliably in harsh industrial environments, making them an ideal solution for modern electrochemical water treatment systems.

The increasing demand for efficient and environmentally friendly wastewater treatment technologies across industries makes MMO titanium electrodes one of the most important materials in advanced electrochemical engineering.
