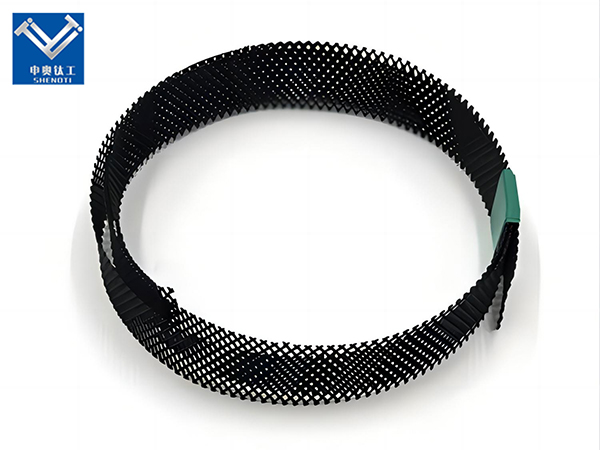

mmo coated titanium ribbon anode
Coating type: Iridium oxide / Ruthenium oxide / Mixed formulations
Current output capacity: 10 A/m – 50 A/m (depending on environment)
Design life: 20 – 40 years
Operating environment: Soil, fresh water, seawater, and concrete
MMO Coated Titanium Ribbon Anode - Professional Cathodic Protection Solution
Baoji City ShenAo Metal Materials Co., Ltd. brings you our enterprise-grade mmo coated titanium ribbon anode, engineered with precision since 2008. Our ribbon anodes feature flexible dimensions of 6.25-12.7mm width and 0.635-1.0mm thickness, delivering robust current output from 10-50 A/m² across diverse environments. With advanced iridium oxide and ruthenium oxide coating formulations, you get an impressive design life of 20-40 years. Backed by our 17 years of explosive welding expertise and active coating manufacturing technology, we ensure every product meets strict quality standards for soil, freshwater, seawater, and concrete applications.
What Makes Our MMO Coated Titanium Ribbon Anode Different?
Our item is more than fair a erosion control component. It's your long-term venture in framework protection.
Superior Specialized Foundation
We fabricate utilizing ASTM B265 Review 1 titanium substrate. This choice isn't arbitrary. You get uncommon ductility and conductivity. The fabric stands up to breakdown voltage effectively.
Our coating handle things to your foot line. We apply Blended Metal Oxides with exactness. The definition incorporates iridium oxide and tantalum pentoxide. This makes an electrocatalytic layer that works energetically in your hardest environments.
Flexible Establishment Options
Your ventures have special challenges. Our lace plan adjusts flawlessly. You can shape it around complex rebar networks. Spot-welding to titanium conductor bars? No issue. The catalytic layer remains intaglio all through establishment.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Technical Specifications
|
Parameter
|
Specification
|
|
Substrate Material
|
ASTM B265 Grade 1 Titanium
|
|
Ribbon Width
|
6.25 mm – 12.7 mm
|
|
Ribbon Thickness
|
0.635 mm – 1.0 mm
|
|
Coating Type
|
Iridium Oxide / Ruthenium Oxide / Mixed Formulations
|
|
Current Output Capacity
|
10 A/m² – 50 A/m²
|
|
Operating Environments
|
Soil, Freshwater, Seawater, Concrete
|
|
Design Life
|
20 – 40 years
|
|
Operating Current Density
|
17.5 mA/m² – 110 mA/m² (environment dependent)
|
|
Coating Loading
|
1 g/m² – 20 g/m²
|
Where Your Projects Benefit Most?
Reinforced Concrete Protection
Bridges, parking structures, and marine piers face constant chloride attack. Your rebar corrodes silently until structural failure threatens. Our mmo coated titanium ribbon anode embeds directly into concrete. It distributes protective current uniformly. Even in high-resistivity concrete, you get complete coverage.
Storage Tank Bottom Protection
Above-ground storage tanks sit on challenging sand cushions. Traditional anodes create installation nightmares. Our ribbon design slips easily into confined spaces between tank bottoms and secondary containment. You protect against soil-side corrosion without major excavation.
Underground Pipeline Networks
Congested plant piping presents shielding problems. Deep-well anodes can't deliver targeted current. Our ribbon system provides hot-spot protection exactly where you need it. Fluctuating groundwater levels? Performance remains stable.
 |
 |
 |
 |
 |
 |
 |

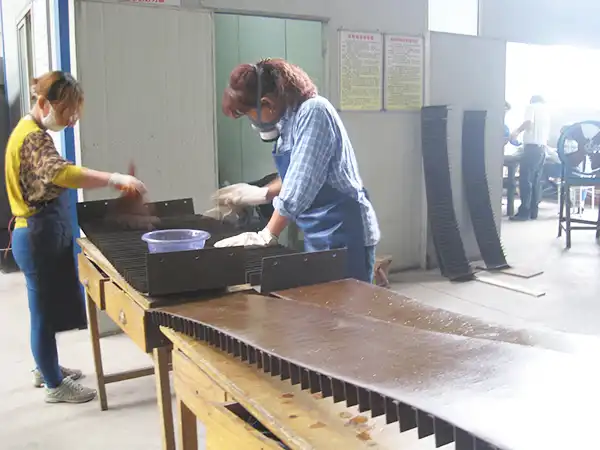

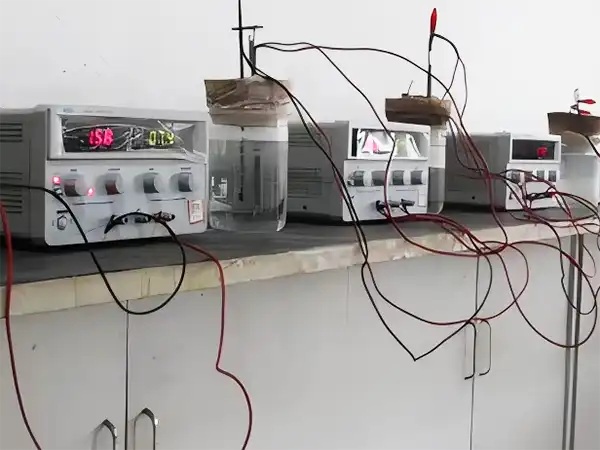

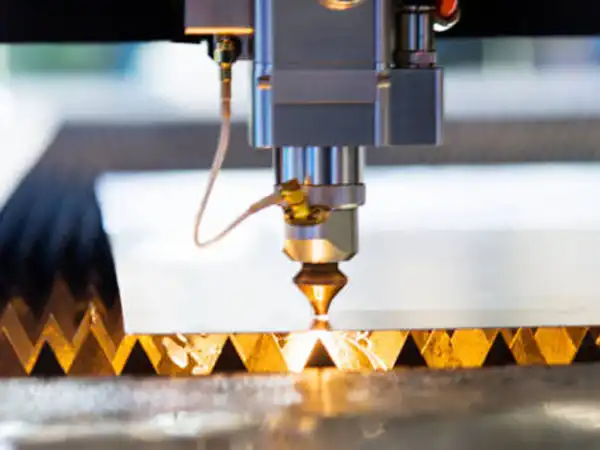

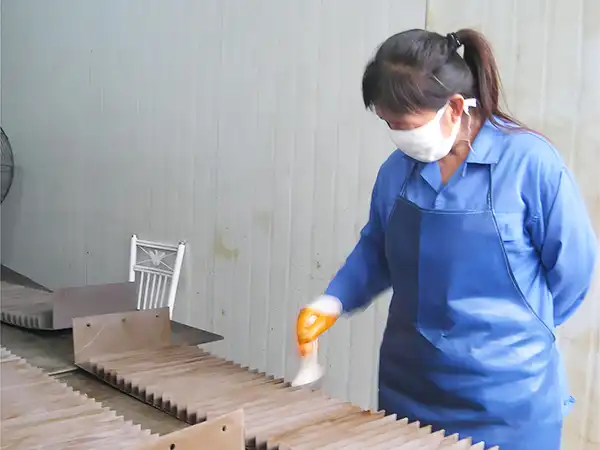

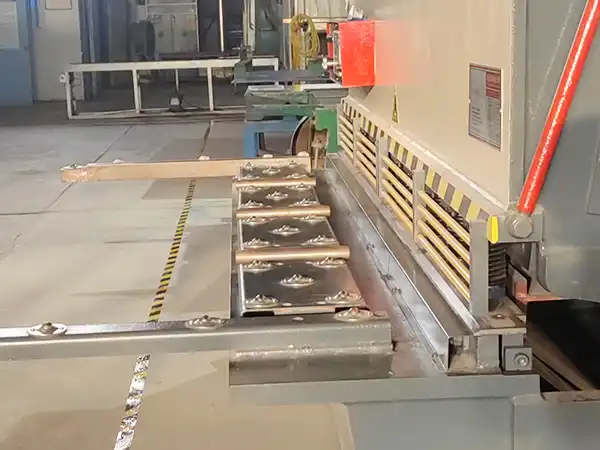

Product production process
|
|
|
|
|
|
|
|
|
|
|
|
Why Partner With ShenAo Metal Materials?
17 A long time of Demonstrated Expertise
Since 2008, we've specialized in valuable metal coated titanium anodes. Our area in Shaanxi Baoji High-tech Mechanical Improvement Zone—China's Titanium Valley—gives us unmatched asset get to. You advantage from develop bimetallar dangerous welding innovation idealized over about two decades.
Customization That Fits Your Needs
Every application contrasts. You might require particular coating definitions. Or special dimensional necessities. Our R&D group works specifically with you. We convey customized arrangements for your correct utilization characteristics and specialized requirements.
Quality You Can Trust
We keep up strict handle innovation measures. Each item experiences thorough testing. Our quality administration framework guarantees consistency. Whether you arrange little test clusters or large-scale generation runs, you get the same Olympic-standard quality.
Fast, Solid Delivery
Your extend timelines matter. We've built proficient generation and coordinations frameworks. You get opportune conveyance anyplace universally. Our worry-free after-sales benefit keeps your operations running easily.
 |
 |
 |
 |
 |
 |
 |
 |
 |
Application Industries
 |
 |
 |
 |
 |
 |
 |
 |
Our Factory
Our Patents and Honors

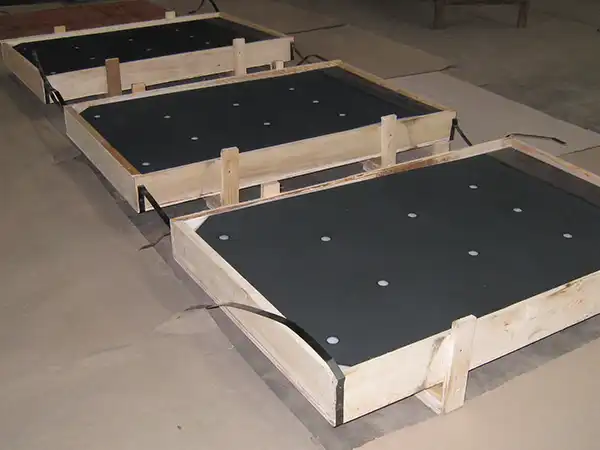

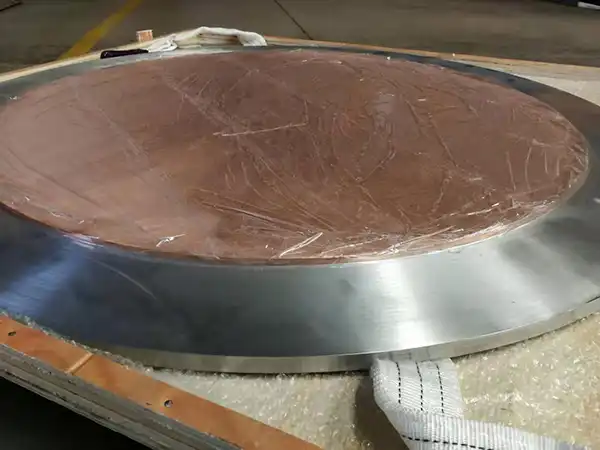

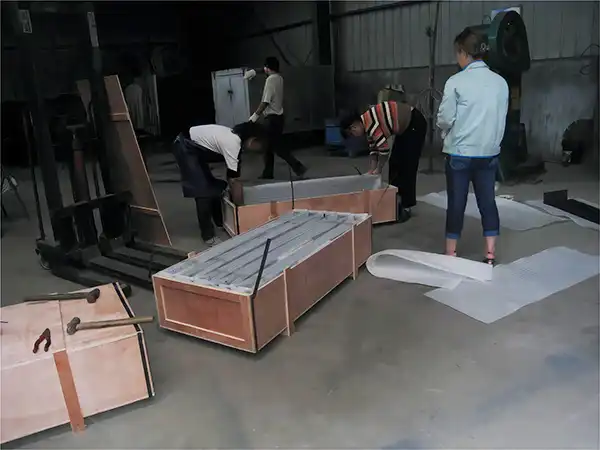

Our Packaging
|
|
|
|
|
|
|
|
|
|
|
|
Frequently Asked Questions
Q: How long will the product actually last in my concrete structure?
A: In properly designed systems operating at recommended current densities (17.5-44 mA/m² in concrete), you can expect 20-40 years of active service. Some installations following NACE TM0108 standards have projected lifespans exceeding 50 years.
Q: Can I install these ribbon anodes myself, or do I need special equipment?
A: Installation is straightforward. You can cut the ribbon to length and shape it as needed. Spot-welding to titanium conductor bars requires basic welding equipment. The coating withstands reasonable installation handling without damage.
Q: What's the difference between your MMO coating and regular titanium?
A: Plain titanium forms an insulating oxide layer when used as an anode. Our MMO coating provides electrocatalytic activity. This means efficient current transfer without anode consumption. You get dimensional stability and decades of reliable service.
Q: Do you provide installation guidance or technical support?
A: Absolutely. Our experienced technical team offers application consulting. We help you design your cathodic protection system. Post-installation support ensures optimal performance throughout the service life.
Q: Can these anodes work in seawater environments?
A: Yes. Our mixed formulation coatings perform excellently in seawater, freshwater, soil, and concrete. We can customize the coating composition for your specific electrolyte conditions.
Contact Us Today
Ready to protect your infrastructure investment with mmo coated titanium ribbon anode? Reach out to our team at zh@baojiti.com.cn for customized solutions tailored to your project requirements.
