Titanium Anode for Online Electrolytic Disinfection in Recirculating Aquaculture Systems

In high-density recirculating aquaculture systems, pathogenic bacteria outbreaks can cause significant economic losses within a short timeframe. Traditional chemical disinfectant dosing not only incurs ongoing chemical procurement costs but may also cause damage to the gills and body surfaces of cultured species, while making precise concentration control difficult to achieve. Online electrolytic disinfection technology is progressively replacing chemical dosing tanks and becoming a mainstream water treatment solution for industrial aquaculture, with the titanium anode for electrolytic disinfection in seawater aquaculture serving as its core component.





Online Electrolytic Disinfection: Precise Microbial Control Through On-Demand Chlorine Generation

Recirculating aquaculture systems must eliminate pathogenic bacteria while protecting the nitrifying bacteria population within the biofilter. Traditional shock dosing methods struggle to balance both objectives—insufficient concentration results in inadequate disinfection, while excessive concentration disrupts the ecological balance of the biofilter, causing ammonia nitrogen and nitrite concentrations to surge.



Online electrolytic disinfection utilizes the chloride ions naturally present in seawater, generating active chlorine species in situ through the titanium anode for electrolytic disinfection in seawater aquaculture when energized. The system can automatically adjust the electrolysis current to precisely control the chlorine production rate by monitoring the oxidation-reduction potential of the culture water in real time, maintaining the active chlorine concentration within an appropriate range—effectively suppressing pathogenic bacteria while avoiding adverse effects on nitrifying bacteria and cultured species. Active chlorine decomposes rapidly after fulfilling its disinfection function, with low residual concentrations. This on-demand generation and precise regulation model supports the aquaculture system in achieving continuous and stable microbial management without production interruption. Actual disinfection effectiveness and impacts on cultured organisms vary depending on cultured species, water salinity, temperature, and system design.​​​​​​​





Seawater Corrosion Resistance and Anti-Scaling: Adapting to the Composite Conditions of Aquaculture Water

Industrial aquaculture water contains not only seawater salinity but also feed residues, fecal particles, and microbial metabolites. Anodes operating long-term in such complex water quality face the dual challenges of active site fouling caused by organic adsorption and scale deposition from calcium and magnesium ions on the electrode surface.



The titanium anode for electrolytic disinfection in seawater aquaculture employs high-purity titanium as the substrate. Titanium exhibits high corrosion resistance in seawater environments, and the substrate can spontaneously form a dense passive film under anodic polarization conditions, providing a stable supporting platform for the coating. The coating adopts an electrocatalytic active layer containing metal oxides such as RuO₂ and IrO₂. The IrO₂ component exhibits high electrochemical stability under chlorine evolution conditions, contributing to maintaining the long-term activity of the coating in aquaculture water with relatively high organic content. The coating surface has undergone microstructural optimization to help reduce irreversible adsorption of organic matter and suspended particles, supporting the anode in maintaining relatively stable chlorine evolution efficiency in complex water quality. The system can remove calcareous deposits on the electrode surface through periodic polarity reversal, assisting in maintaining long-term stability of electrolysis efficiency. Actual working life varies depending on cultured species, feed type, water hardness, temperature, and operating mode.





Engineering Value for the Industrial Aquaculture Market

In the global recirculating aquaculture market, the precision and reliability of water treatment systems are decisive factors in aquaculture success rates. The engineering value of the titanium anode for electrolytic disinfection in seawater aquaculture in this market lies in combining online precision disinfection with resistance to aquaculture water corrosion, supporting recirculating water systems in achieving low chemical input and high-efficiency microbial management.

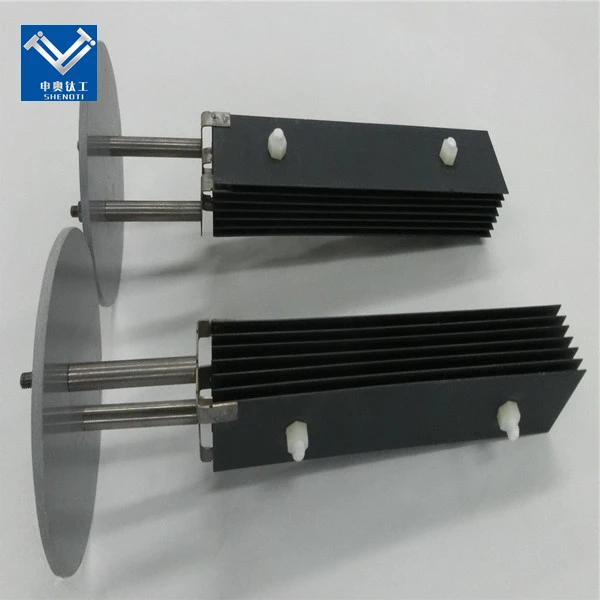

These titanium anode products are built on high-purity titanium substrates and coated with metal oxide systems such as RuO₂ and IrO₂, and can be customized into plate, mesh, tubular, and other geometric configurations to suit electrolytic disinfection devices of different scales in recirculating aquaculture. It is recommended that aquaculture enterprises and recirculating system integrators conduct field condition testing of titanium anodes for electrolytic disinfection in seawater aquaculture based on their cultured species, water salinity, and water treatment processes. By tracking indicators such as water microbial indicators, culture survival rate, biofilter nitrification efficiency, and long-term anode operating performance, the technical compatibility and comprehensive economic benefits of the online electrolytic disinfection solution in specific aquaculture scenarios can be evaluated.





Important Note: The performance descriptions above are based on engineering experience under specific test conditions or internal test data. Differences may exist between laboratory results and actual operating conditions. Actual disinfection effectiveness, working life, and impacts on cultured organisms vary depending on cultured species, water salinity, temperature, organic concentration, operating parameters, and system design. This product is a water treatment equipment component for recirculating aquaculture systems, and its suitability for aquaculture disinfection must be verified by the user according to cultured species characteristics and relevant regulations. Sufficient compatibility validation prior to bulk procurement is recommended.
