DSA Coated Titanium Anode for Demanding Chlor-Alkali Applications with Long-Cycle Stable Chlorine Generation

The chlor-alkali industry represents one of the most established application fields for electrochemical technology. With the expansion of emerging processes such as on-site sodium hypochlorite generators and acidic etchant regeneration, the anode's working environment extends from traditional electrolyzers to extreme soluble systems characterized by high temperature, strong acidity, and elevated chlorine levels. The DSA coated titanium anode is an electrochemical core component engineered for long-cycle stable operation under such demanding conditions.





Chlorine Evolution Catalysis: Balancing Low Overpotential and Long-Term Stability

In chlor-alkali electrolysis and on-site chlorine generation applications, the overpotential of the anodic chlorine evolution reaction directly determines the cell voltage and DC power consumption of the electrolysis unit. The coating formulation of the DSA coated titanium anode is typically based on mixed metal oxide systems such as RuO₂-IrO₂. RuO₂ exhibits a relatively low overpotential for the chlorine evolution reaction, contributing to maintaining a lower cell voltage at a given current density. The introduction of IrO₂ can enhance the electrochemical stability of the coating under strong acid and high current density conditions.



By constructing binary or ternary solid solution structures, the coating can optimize electron transfer pathways while maintaining chlorine evolution activity, enabling the reaction to proceed efficiently at a lower potential. Under typical operating conditions, a compositionally optimized coating can maintain relatively stable chlorine evolution overpotential over an extended operating period, contributing to the control of long-term energy consumption in chlorine generation processes. Actual overpotential variation trends may differ depending on electrolyte composition, temperature, and operating current density.

Performance varies based on specific operating conditions. Actual results depend on the electrolyte system and operating parameters.





Coating Anti-Spalling: Service Life Assurance Under Extreme Conditions

In high-temperature, high-acid chlorine generation environments, the anode coating faces multiple failure risks. Nascent chlorine generated during the chlorine evolution reaction possesses strong oxidizing properties and continuously impinges on the coating surface. The acidic electrolyte may penetrate along micro-cracks in the coating, potentially triggering corrosion at the titanium substrate-coating interface. Bubble scouring and temperature fluctuations during operation further exacerbate mechanical stress on the coating.



The DSA coated titanium anode addresses these challenges through synergistic optimization of coating formulation and preparation processes. Coating thickness is generally controlled within the 5 to 20 micrometer range. The incorporation of oxide components with relatively high stability, such as IrO₂, contributes to enhanced chemical inertness of the coating in strongly acidic media. The appropriate addition of inert components can improve thermal expansion compatibility between the coating and the titanium substrate, reducing interfacial stress accumulation caused by thermal cycling. At the microstructural level, controlling coating density and crack distribution helps slow the penetration rate of electrolyte toward the substrate interface. These measures work in concert, enabling the coating to tend toward maintaining adhesion integrity with the substrate under typical high-temperature, high-acid chlorine generation conditions.



The substrate employs high-purity titanium (Grade 1 or Grade 2), which can spontaneously form a dense passive film under anodic polarization conditions, providing a stable supporting platform for the coating. Under appropriate electrolyte systems and operating conditions, the electrode can operate stably within a current density range of 100 to 10,000 A/m², with actual working life varying depending on electrolyte composition, temperature, and operating parameters.





Engineering Value for the Chlor-Alkali and Electrochemical Chlorine Generation Market

In the global chlor-alkali and on-site chlorine generation market, chlor-alkali producers and water treatment equipment integrators are shifting their focus from initial procurement cost to total cost of ownership, encompassing service life, overpotential stability, and maintenance frequency.

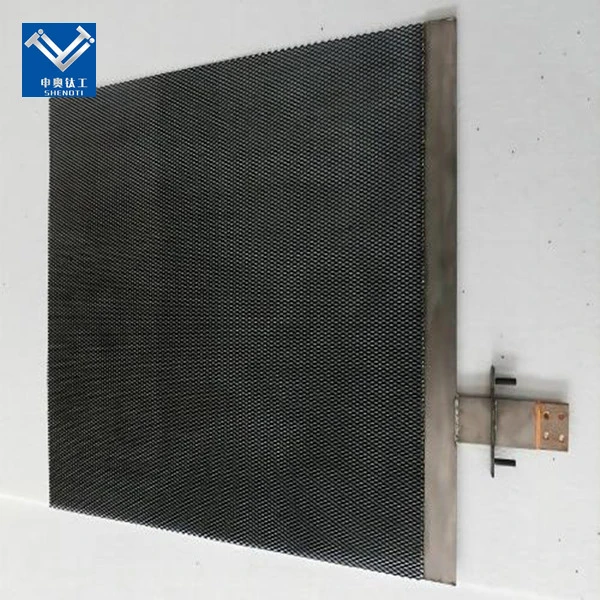

The engineering value of the DSA coated titanium anode in this market lies in combining low chlorine evolution overpotential with coating anti-spalling capability. Its dimensional stability means that during long-term operation, electrode geometry and inter-electrode spacing tend to remain stable, contributing to current distribution uniformity and batch-to-batch consistency in chlorine generation efficiency. Our coated titanium anode products, built on high-purity titanium substrates and coated with mixed metal oxide coatings, can be customized into plate, mesh, tubular, and other geometric configurations to suit different electrolyzer and on-site generator designs.



We recommend that chlor-alkali producers and system engineering firms conduct bench-scale or pilot validation of DSA coated titanium anodes based on their specific electrolyte composition, temperature, and operating parameters. By tracking indicators such as cell voltage variation trends, chlorine evolution current efficiency, and long-cycle coating operating performance, the technical compatibility and total lifecycle economics of the anode in the target application scenario can be evaluated.





Important Note: The performance descriptions above are based on engineering experience under typical conditions or internal test data. Differences may exist between laboratory data and actual operating conditions. Actual chlorine evolution overpotential, working life, and coating anti-spalling performance vary depending on electrolyte composition, temperature, current density, and system design. This product is an industrial electrochemical equipment component, and its suitability must be verified by the user according to local regulations and application conditions. Sufficient compatibility validation prior to bulk procurement is recommended.
