Titanium Anode for Catalytic Degradation in Advanced Oxidation Treatment of Printing and Dyeing Wastewater

When conventional biological treatment processes reach their degradation limit for recalcitrant organics in printing and dyeing wastewater, electrochemical advanced oxidation processes (EAOP) emerge as an engineering option for advanced treatment. This technology generates strong oxidizing species such as hydroxyl radicals in situ on the anode surface, progressively mineralizing recalcitrant azo dyes, auxiliaries, and intermediates into carbon dioxide and water. When selecting core components, system integrators focus on the electrocatalytic activity and operational durability of the electrode. The titanium anode for printing and dyeing wastewater treatment is an electrochemical component engineered to meet such advanced oxidation requirements.

Hydroxyl Radical Generation: The Technical Core of Electrocatalytic Activity

Azo dyes, anthraquinone dyes, and organic auxiliaries contained in printing and dyeing wastewater possess aromatic rings and conjugated double bonds in their molecular structures that are chemically stable and relatively resistant to conventional oxidants and microbial degradation. Hydroxyl radicals, by virtue of their high oxidation-reduction potential, can attack these conjugated structures with relative non-selectivity, cleaving macromolecular organics into small-molecule intermediates and progressively mineralizing them.

When energized, the active sites on the coating surface of the titanium anode for printing and dyeing wastewater treatment can catalyze water molecule oxidation, generating adsorbed hydroxyl radicals before the oxygen evolution side reaction occurs. The electrocatalytic activity of the coating directly determines the hydroxyl radical yield and the treatment efficiency of the system. Coating formulations are typically based on metal oxide systems such as RuO₂-IrO₂-SnO₂ or IrO₂-Ta₂O₅. Through synergistic modulation of composition ratios and microstructure, the coating tends to maintain a relatively low oxygen evolution overpotential across a broad current density range, directing more current toward hydroxyl radical generation rather than oxygen evolution dissipation. For high-salinity printing and dyeing wastewater, the coating can maintain relatively stable catalytic selectivity even in chloride-containing environments, supporting the sustained generation of active species. Actual catalytic efficiency and degradation effectiveness vary depending on wastewater composition, dye type, pH, temperature, and current density.

Performance varies based on specific operating conditions. Actual results depend on wastewater quality and operating parameters.

Anti-Fouling and Durability: Adapting to the Composite Conditions of Printing and Dyeing Wastewater

The water quality of printing and dyeing wastewater fluctuates significantly with different dyeing processes and dye formulations, often containing inorganic salts, surfactants, and residual sizing agents. Anodes operating long-term in such composite water quality face the risk of active site fouling caused by organic polymerization and adsorption on the electrode surface, as well as chemical corrosion of the substrate in high-salinity environments.

The titanium anode for printing and dyeing wastewater treatment employs high-purity titanium as the substrate. The titanium substrate can spontaneously form a dense passive film under anodic polarization conditions, providing structural stability for the electrode in wastewater with fluctuating salinity and pH levels. The introduction of inert components such as SnO₂ or Ta₂O₅ into the coating can improve the hydrophilicity and anti-fouling tendency of the coating surface, helping to reduce irreversible adsorption of dye molecules and auxiliaries on active sites. The coating and substrate achieve high bonding strength through optimized pretreatment processes, supporting the maintenance of structural integrity during long-term operation. The coating thickness has been optimized to balance catalytic activity with durability. Actual working life and anti-fouling performance vary depending on wastewater composition, dye concentration, salinity, and operating mode.

Engineering Value for the EAOP System Integration Market

In the global printing and dyeing wastewater advanced treatment market, the application of EAOP technology is expanding from pilot projects to large-scale deployment. The engineering value of the titanium anode for printing and dyeing wastewater treatment in this market lies in combining high electrocatalytic activity with resistance to complex water quality durability, supporting EAOP systems in achieving stable advanced treatment performance at relatively lower energy consumption.

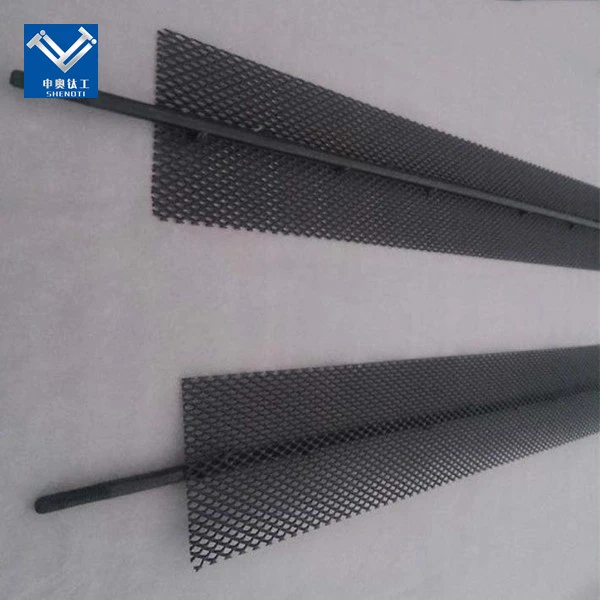

These titanium anode products are built on high-purity titanium substrates and coated with metal oxide systems such as RuO₂-IrO₂-SnO₂ or IrO₂-Ta₂O₅, and can be customized into plate, mesh, tubular, and other geometric configurations to suit EAOP reactors of different scales and structures. It is recommended that EAOP system integrators and printing and dyeing enterprises conduct field condition testing of titanium anodes for printing and dyeing wastewater treatment based on their wastewater quality, treatment capacity, and discharge standards. By tracking indicators such as COD removal rate, chromaticity degradation effectiveness, unit energy consumption, and long-term anode operating performance, the technical compatibility and comprehensive operating cost of the anode in specific application scenarios can be evaluated.

Important Note: The performance descriptions above are based on engineering experience under specific test conditions or internal test data. Differences may exist between laboratory results and actual operating conditions. Actual catalytic degradation efficiency, working life, and energy consumption levels vary depending on wastewater quality, dye type, salinity, temperature, current density, operating parameters, and system design. This product is an industrial wastewater treatment equipment component, and its suitability for printing and dyeing wastewater treatment must be verified by the user according to local environmental regulations and discharge standards. Sufficient compatibility validation prior to bulk procurement is recommended.
