DSA Titanium Anode with Low Overpotential for Oxygen Evolution in Industrial Hydrogen Production

In both alkaline water electrolysis and PEM electrolysis hydrogen production pathways, the anodic oxygen evolution reaction is a core link affecting system energy consumption. The oxygen evolution overpotential directly correlates with the DC power consumption of the electrolyzer and represents a key technical indicator that hydrogen equipment manufacturers and water electrolysis hydrogen production project developers prioritize during anode selection. The DSA titanium anode for electrolysis of water, known as the Dimensionally Stable Anode, is an electrochemical core component engineered to reduce oxygen evolution overpotential and adapt to high current density long-cycle operation.





Oxygen Evolution Overpotential: A Key Variable in Hydrogen Production Energy Consumption

The total cell voltage in water electrolysis for hydrogen production comprises the theoretical decomposition voltage, membrane resistance drop, solution ohmic drop, and both cathodic and anodic overpotentials. Among these, the anodic oxygen evolution overpotential is the portion that can be modulated through electrocatalyst design and represents one of the main sources of electrical energy loss. A higher oxygen evolution overpotential means additional electrical energy dissipates as Joule heat, driving up the power consumption per unit of hydrogen output.



The DSA titanium anode for electrolysis of water optimizes the oxygen evolution reaction pathway through precise tuning of coating composition. Coating formulations are typically based on RuO₂-IrO₂-Ta₂O₅ ternary systems. IrO₂ exhibits relatively high electrocatalytic activity and chemical stability under alkaline oxygen evolution conditions, the introduction of RuO₂ can further lower the overpotential, while the inert Ta₂O₅ component helps enhance the mechanical integrity of the coating and its adhesion to the titanium substrate. Through synergistic optimization of composition ratios and microstructure, this coating system can maintain a relatively low oxygen evolution overpotential under typical operating conditions, helping to keep the cell voltage within a narrower range, thereby reducing DC power consumption per unit of hydrogen output. Actual energy efficiency performance may vary depending on electrolyte composition, operating temperature, and current density. Specific performance depends on actual operating conditions.

Usage Guideline: Oxygen evolution overpotential and energy efficiency performance depend on the electrolyte system and operating parameters. Energy efficiency evaluation under actual operating conditions is recommended.





High Current Density and Long-Cycle Stability

The economic viability of industrial hydrogen production requires electrolyzers to operate continuously at high current densities to enhance unit equipment productivity. This places two demands on the anode coating: first, maintaining a relatively low overpotential at high current densities to avoid voltage spikes caused by mass transfer limitations; second, ensuring the electrocatalytic activity of the coating does not undergo significant decay over operating cycles spanning thousands to tens of thousands of hours.



The coating thickness of the DSA titanium anode for electrolysis of water is typically controlled within the 5 to 15 micrometer range. The coating microstructure is engineered to help maintain active site accessibility under conditions of vigorous bubble evolution, reducing the interference of bubble shielding effects on current distribution. The substrate employs high-purity titanium (Grade 1 or Grade 2), which can spontaneously form a passive film under anodic polarization conditions, providing a long-term stable supporting platform for the coating. Under appropriate electrolyte systems and operating conditions, the electrode can operate stably across a broad current density range, with cumulative working life reaching thousands to tens of thousands of hours, with actual service life varying depending on electrolyte composition, temperature, current density, and operating mode.





Engineering Adaptability for the Hydrogen Production Market

Against the backdrop of rapid global water electrolysis hydrogen production industry development, the performance requirements for core components in alkaline water electrolysis and PEM electrolysis equipment continue to rise. As a functional consumable within the electrolyzer, anode selection is directly linked to the total lifecycle operating cost of the system.

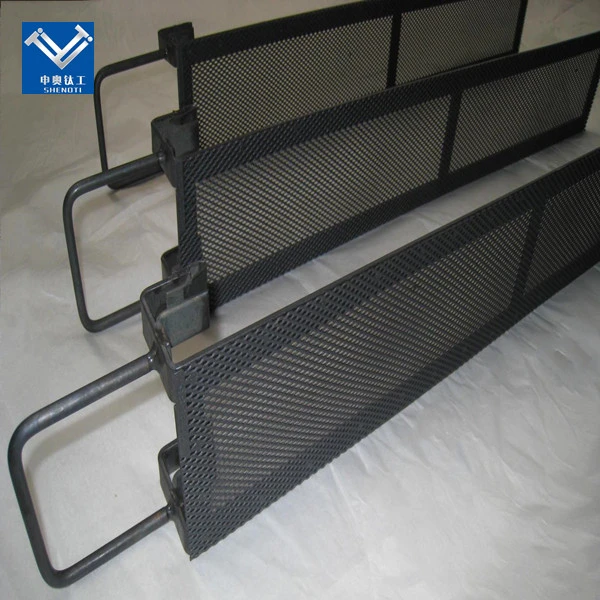

The engineering value of the DSA titanium anode for electrolysis of water in this market lies in translating oxygen evolution overpotential optimization from laboratory data into long-cycle operational performance. Our titanium anode products, built on high-purity titanium substrates and coated with noble metal mixed oxide systems such as RuO₂-IrO₂-Ta₂O₅, can be customized into plate, mesh, tubular, and other geometric configurations according to different electrolyzer designs.



We encourage hydrogen production equipment integrators and water electrolysis hydrogen production project developers to conduct bench-scale or pilot validation of DSA titanium anodes for electrolysis of water based on their specific electrolyte systems and operating parameters. By tracking indicators such as cell voltage variation trends, oxygen evolution overpotential, and long-term operational stability, the technical compatibility and total lifecycle economics of the anode in target hydrogen production scenarios can be evaluated.





Important Note: The performance descriptions above are based on engineering experience under typical conditions or internal test data. Actual oxygen evolution overpotential, energy efficiency optimization magnitude, and working life may vary depending on electrolyte composition, temperature, current density, operating mode, and system design. This product is designed for industrial electrolytic water hydrogen production applications. Sufficient compatibility validation prior to bulk procurement is recommended. Please refer to relevant technical documentation for detailed safety and operational information.
