Titanium Anode for Microbial and Algae Control in Industrial Circulating Water with Reduced Chemical Use
2026-06-24 09:46:36
Cooling towers and industrial circulating water systems in large-scale plants face the dual challenges of microbial proliferation and biofilm deposition during operation. Traditional chemical dosing solutions not only incur ongoing chemical procurement, storage, and transportation costs but may also cause corrosion to heat exchange piping due to chemical residues, while chemicals in blowdown water face increasingly stringent environmental regulatory oversight. Against this backdrop, electrolysis-based online microbial control technology is emerging as an engineering alternative, with the titanium anode for electrolytic sterilization and algae removal serving as its core functional component.
Online Electrochemical Treatment: In-Situ Oxidation Utilizing Inherent Electrolytes in Water
Industrial circulating water naturally contains electrolytes such as chloride ions and bicarbonates. When energized, the coating surface of the titanium anode for electrolytic sterilization and algae removal oxidizes chloride ions present in the water into active chlorine species such as hypochlorous acid through electrocatalytic reactions, while simultaneously generating hydroxyl radicals and reactive oxygen through partial water molecule oxidation. These oxidative species, generated in situ on the anode surface, rapidly diffuse into the water body and act on bacterial cell membranes and algal cell walls, helping to inhibit their growth and reproduction and achieving sustained microbial population control.
Compared to traditional intermittent shock dosing of chemical agents, electrochemical online treatment can maintain a continuous low-concentration oxidative environment in the water, helping to reduce cyclical rebounds in microbial populations. System operation requires no downtime, and the anode can function stably in either side-stream or full-flow circulating water modes. Actual microbial control and algae inhibition effectiveness varies depending on circulating water chloride ion concentration, temperature, pH, and flow rate.
Performance varies based on specific operating conditions. Actual results depend on circulating water quality and operating parameters.
Reduced Chemical Dependence: Lowering Maintenance Costs and Environmental Compliance Pressure
Electrochemical online treatment solutions use electric current as the core driving force, generating active species from existing electrolytes in the water, helping to reduce dependence on externally sourced chemical agents. This characteristic translates into operational benefits across multiple dimensions. Chemical procurement and inventory management costs can be reduced, and maintenance workload for auxiliary equipment such as dosing pumps and storage tanks can be correspondingly lowered. Furthermore, reduced chemical usage means fewer chemical residues in blowdown water, helping to simplify subsequent treatment or reuse processes.
In terms of corrosion control, electrochemical online treatment operates through a low-concentration continuous oxidation mode, helping to avoid localized chemical corrosion of piping and heat exchange surfaces associated with traditional high-concentration shock dosing. The titanium anode for electrolytic sterilization and algae removal employs high-purity titanium as the substrate, coated with metal oxide active layers such as IrO₂ and RuO₂. The titanium substrate can spontaneously form a passive film in circulating water environments, providing structural stability for the electrode. The coating tends to maintain stable chlorine and oxygen evolution catalytic activity across a broad range of water quality conditions, supporting long-term low-maintenance system operation. Actual working life varies depending on circulating water quality, operating temperature, and current density.
Engineering Value for the Industrial Circulating Water Market
In the overseas industrial cooling water management market, facility operators of large-scale plants and commercial buildings continue to raise their requirements for the safety, environmental friendliness, and cost-effectiveness of water treatment solutions. The engineering value of the titanium anode for electrolytic sterilization and algae removal in this market lies in integrating online continuous treatment with reduced chemical dependence into a single technical solution.

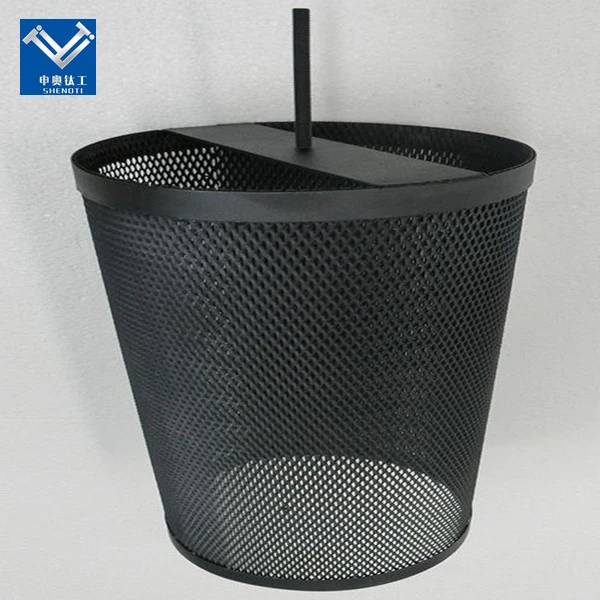

Its application scenarios span various industrial cooling systems. In open cooling towers of the chemical and power industries, the anode helps inhibit bacterial and algal growth in cooling water, maintaining heat exchange efficiency. In closed-loop circulating systems of data centers and commercial buildings, the anode helps reduce biofilm deposition on pipe interior walls. Our titanium anode products, built on high-purity titanium substrates and coated with metal oxide systems such as IrO₂ and RuO₂, can be customized into plate, mesh, tubular, and other geometric configurations to suit online electrochemical treatment devices of different scales.
We recommend that cooling system operators and water treatment equipment integrators conduct pilot validation of titanium anodes for electrolytic microbial control and algae inhibition based on their circulating water quality characteristics, microbial control objectives, and operating conditions. By tracking indicators such as microbial population variation trends, biofilm deposition extent, and long-term electrode operating performance, the technical compatibility and comprehensive economic benefits of the electrochemical online treatment solution in specific application scenarios can be evaluated.
Important Note: The performance descriptions above are based on engineering experience under specific test conditions or internal test data. Differences may exist between laboratory results and actual operating conditions. Actual microbial control and algae inhibition effectiveness, working life, and energy consumption vary depending on circulating water quality, chloride ion concentration, temperature, flow rate, and system design. This product is an industrial water treatment equipment component, and its suitability should be verified by the user according to local regulations and application conditions. Sufficient compatibility validation prior to bulk procurement is recommended.
