Titanium Anode for Long-Life Impressed Current Cathodic Protection

In the corrosion protection of buried pipelines, ship hulls, offshore platforms, and port facilities, impressed current cathodic protection (ICCP) systems serve as a critical technology for ensuring the long-term safety of metallic structures. The core component of such systems is the auxiliary anode, whose performance directly determines the durability of the protection effect and system maintenance costs. Mixed metal oxide titanium anodes are electrochemical core components engineered to meet the requirements of extended service life, dimensional stability, and extremely low consumption operation.





Dimensional Stability: The Engineering Foundation for Extended Service Life

Traditional graphite or lead-based auxiliary anodes gradually change their geometry during operation due to electrochemical consumption, leading to deterioration of current distribution and increased anode replacement frequency. For application scenarios where frequent maintenance is difficult, such as buried pipelines and subsea structures, the consumption rate of the anode is directly linked to the total lifecycle cost of the system.



Mixed metal oxide titanium anodes employ high-purity titanium as the substrate, with an electrocatalytic active layer containing metal oxides such as IrO₂, RuO₂, and Ta₂O₅ coated on the surface. The titanium substrate can spontaneously form a dense passive film under anodic polarization conditions, effectively suppressing electrochemical dissolution of the substrate itself and providing structural integrity for the electrode. The coating enables the titanium substrate to operate stably during anodic reactions without continuous consumption as seen with traditional soluble anodes. Under typical ICCP operating conditions, electrode geometry and inter-electrode spacing tend to remain stable over the long term, contributing to uniform protective current distribution and sustained protection effectiveness. Under ideal operating conditions, theoretical working life may extend to decades, with actual performance varying depending on soil resistivity, seawater salinity, current density, and operating mode.

Performance varies based on specific operating conditions. Actual results depend on the medium environment and operating parameters.​​​​​​​



Coating System: Balancing Conductivity and Electrocatalytic Activity

ICCP anodes are required to stably deliver protective current at relatively low operating voltages, placing demands on the conductivity and electrocatalytic activity of the coating. The coating formulation of mixed metal oxide titanium anodes is compositionally optimized, with IrO₂ and RuO₂ components imparting high electronic conductivity and chlorine or oxygen evolution catalytic activity to the coating, contributing to reduced anode operating potential and lower system energy consumption. The introduction of the inert Ta₂O₅ component can improve the mechanical integrity of the coating and its bonding strength with the titanium substrate, supporting the coating in maintaining functional stability during long-term operation.



The coating is applied through a precision thermal decomposition process, forming a dense and strongly adherent electrocatalytic interface on the titanium substrate surface. In various medium environments including seawater, freshwater, and soil, the coating tends to maintain a relatively low and stable operating potential, providing continuous and reliable cathodic polarization for the protected metallic structure. Furthermore, the coating consumption rate is extremely low, tending toward near-zero consumption operation under typical conditions, helping to avoid environmental contamination issues caused by anode material dissolution.





Engineering Value for the ICCP Market

In the global infrastructure corrosion protection market, operators of buried pipelines, offshore platforms, and port facilities continue to raise their requirements for ICCP system reliability. The engineering value of mixed metal oxide titanium anodes in this market lies in combining long-cycle dimensional stability with extremely low consumption characteristics, supporting ICCP systems in achieving long-term stable protection objectives.

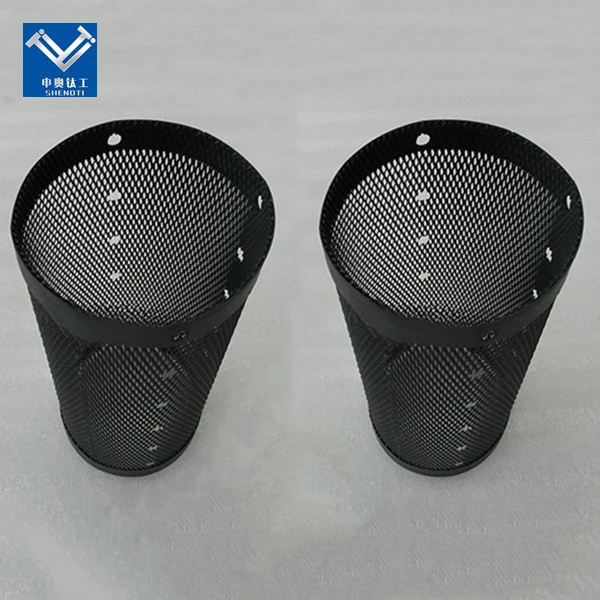

Their application scenarios span various demanding environments. In seawater environments, the coating maintains stable chlorine evolution activity at relatively high chloride ion concentrations, providing durable protection for ship hulls and platform structures. In soil environments, the anode tends to maintain stable electrochemical performance under varying moisture and oxygen content conditions, delivering reliable cathodic polarization for buried pipelines. Our mixed metal oxide titanium anode products, built on high-purity titanium substrates and coated with metal oxide systems such as IrO₂, RuO₂, and Ta₂O₅, can be customized into tubular, rod, wire, mesh, and other geometric configurations to suit ICCP system designs for different structures and water conditions.



We recommend that ICCP system integrators and infrastructure operators conduct field validation of mixed metal oxide titanium anodes based on their specific medium environment, protective current requirements, and operating parameters. By tracking indicators such as anode operating potential variation, protective potential distribution, and long-term anode operating performance, the technical compatibility and total lifecycle economics of the anode in the target application scenario can be evaluated.





Important Note: The performance descriptions above are based on engineering experience under specific test conditions or internal test data. Differences may exist between laboratory results and actual operating conditions. Actual working life, protection effectiveness, and operating potential vary depending on medium resistivity, chemical composition, temperature, current density, and system design. This product is an industrial electrochemical corrosion protection equipment component, and its suitability should be verified by the user according to local regulations and application conditions. Sufficient compatibility validation prior to bulk procurement is recommended.
