Basic Introduction to Ir-Ta Titanium Anode for Copper Foil Electrolysis

1.1 Core Material Composition of Ir-Ta Titanium Anode for Copper Foil Electrolysis

The Ir-Ta Titanium Anode for Copper Foil Electrolysis consists of two primary parts: pure titanium substrate and iridium-tantalum mixed metal oxide active coating. Grade TA1 or TA2 titanium serves as the base material, featuring outstanding corrosion resistance in sulfuric acid-based electrolytes. The surface active layer is iridium dioxide blended with tantalum pentoxide, the classic oxygen evolution coating formula designed for acidic electrolysis environments. Unlike ruthenium-iridium electrodes developed for chlorine evolution, the Ir-Ta Titanium Anode for Copper Foil Electrolysis is optimized for oxygen evolution reaction, which matches the electrochemical reaction mechanism inside copper foil electrolytic cells perfectly. Without proper iridium tantalum coating, titanium substrates will quickly form passive oxide films and lose conductivity, shortening the whole service cycle of the electrolysis system. Every batch of Ir-Ta Titanium Anode for Copper Foil Electrolysis undergoes strict coating composition testing to guarantee consistent electrochemical activity.

1.2 Working Principle in Copper Foil Electrolysis Process

In electrolytic copper foil production, copper ions precipitate on the cathode roller to form continuous copper foil. The Ir-Ta Titanium Anode for Copper Foil Electrolysis acts as the insoluble anode inside the electrolytic tank. Under direct current loading, oxygen evolution reaction occurs on the anode surface. High-quality Ir-Ta Titanium Anode for Copper Foil Electrolysis maintains low oxygen evolution potential, effectively cutting cell voltage and saving massive electricity expenses during continuous 24-hour production. Uniform current distribution from the Ir-Ta Titanium Anode for Copper Foil Electrolysis prevents local overcurrent, avoiding surface defects such as pinholes, wrinkles and uneven thickness on finished electrolytic copper foil. For ultra-thin copper foil below 6μm used in lithium-ion batteries, the stability of Ir-Ta Titanium Anode for Copper Foil Electrolysis directly determines the yield rate of finished products.

2. Manufacturing Process of Ir-Ta Titanium Anode for Copper Foil Electrolysis

2.1 Titanium Substrate Pretreatment Process

The production of qualified Ir-Ta Titanium Anode for Copper Foil Electrolysis starts with rigorous substrate treatment. Raw titanium plates, titanium mesh or titanium plates with flow channel structures go through cutting, precision machining, degreasing cleaning and acid etching. Acid etching generates uniform rough surface texture on titanium base, strengthening the bonding force between substrate and Ir-Ta coating. Poor pretreatment leads to coating peeling during electrolysis, greatly shortening the service life of Ir-Ta Titanium Anode for Copper Foil Electrolysis. Our factory controls etching temperature and time precisely to ensure every substrate ready for Ir-Ta coating deposition meets the standard for copper foil electrolysis working conditions.

2.2 Ir-Ta Precursor Coating & Thermal Decomposition Technology

After surface pretreatment, workers evenly brush or spray iridium-tantalum mixed precursor solution onto the treated titanium substrate. The coated workpiece enters high-temperature heating ovens for thermal decomposition. Multiple repeated coating and baking cycles form compact, crack-controllable iridium tantalum oxide active layer. This thermal decomposition technology is the core craft determining the performance of Ir-Ta Titanium Anode for Copper Foil Electrolysis. We adjust iridium and tantalum proportion according to customer’s electrolyte temperature, current density and tank liquid composition. Customized coating loading capacity makes the Ir-Ta Titanium Anode for Copper Foil Electrolysis adapt to low-current and high-current copper foil production lines separately. Many copper foil enterprises choose our adjustable coating formula Ir-Ta Titanium Anode for Copper Foil Electrolysis to match newly built or upgraded electrolytic production lines.

2.3 Finishing Inspection & Quality Testing of Ir-Ta Titanium Anode for Copper Foil Electrolysis

After thermal decomposition procedures, finished Ir-Ta Titanium Anode for Copper Foil Electrolysis will pass multiple testing procedures. Inspection items include surface coating uniformity, adhesion test, accelerated electrolysis life test, electrochemical impedance testing and polar curve testing. Unqualified semi-finished products will be reworked to avoid defective goods delivered to copper foil manufacturers. All test data of each batch Ir-Ta Titanium Anode for Copper Foil Electrolysis can be provided for customer reference. Strict quality control ensures the Ir-Ta Titanium Anode for Copper Foil Electrolysis runs steadily for thousands of hours in harsh acidic electrolytic environments.

3. Key Advantages of Ir-Ta Titanium Anode for Copper Foil Electrolysis

• Low oxygen evolution potential: The Ir-Ta Titanium Anode for Copper Foil Electrolysis reduces cell voltage, lowering long-term power consumption for copper foil electrolysis workshop
• Excellent acid corrosion resistance: The Ir-Ta Titanium Anode for Copper Foil Electrolysis adapts to sulfuric acid copper electrolyte, resisting erosion under continuous operating status
• Uniform current distribution: Stabilized current output from Ir-Ta Titanium Anode for Copper Foil Electrolysis improves flatness and thickness consistency of electrolytic copper foil
• Long service lifespan: High-adhesion Ir-Ta oxide coating slows down coating loss, lowering anode replacement frequency and downtime loss

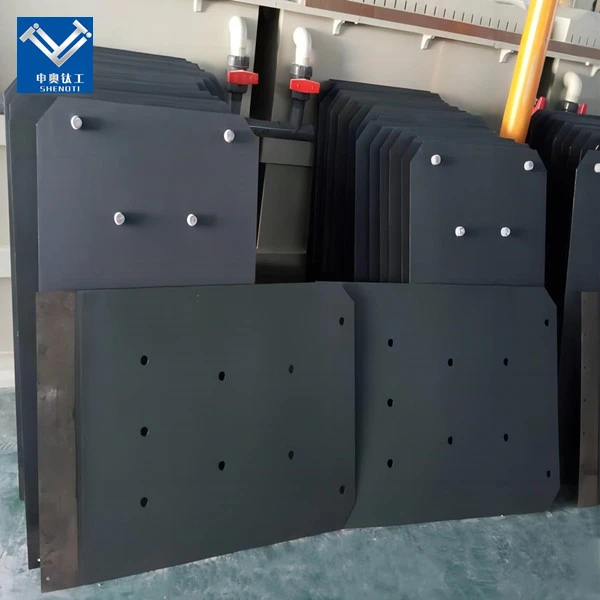

• Customizable structure: Flat plate type, porous mesh type and flow channel type Ir-Ta Titanium Anode for Copper Foil Electrolysis can be manufactured according to electrolytic cell structure
• Insoluble anode characteristic: No metal ion contamination, effectively guarantee the purity of electrolytic copper foil products

4. Main Application Fields of Ir-Ta Titanium Anode for Copper Foil Electrolysis

4.1 Lithium Battery Electrolytic Copper Foils Production

The fast-growing new energy battery industry creates huge demand for high-performance Ir-Ta Titanium Anode for Copper Foil Electrolysis. Power batteries and energy storage batteries require ultra-thin, high tensile strength copper foil. The Ir-Ta Titanium Anode for Copper Foil Electrolysis supports stable production of 4μm–12μm battery-grade copper foil. Battery copper foil manufacturers continuously upgrade old production lines and replace outdated electrodes with high-performance Ir-Ta Titanium Anode for Copper Foil Electrolysis to boost product competitiveness in the new energy supply chain.

4.2 PCB Electrolytic Copper Foil Manufacturing

Printed circuit board industry relies on medium-thickness electrolytic copper foil. The Ir-Ta Titanium Anode for Copper Foil Electrolysis is widely installed in PCB copper foil electrolytic tanks. Stable operation of Ir-Ta Titanium Anode for Copper Foil Electrolysis minimizes surface blemishes on circuit copper foil, meeting strict requirements for high-frequency circuit boards and flexible PCB substrates. Circuit material manufacturers cooperate with us for long-term supply of standardized and customized Ir-Ta Titanium Anode for Copper Foil Electrolysis.

4.3 Other Related Electrolytic Metal Foil Production Scenarios

Besides mainstream copper foil electrolysis, the structural design and Ir-Ta coating technology of Ir-Ta Titanium Anode for Copper Foil Electrolysis can also be adjusted for similar acidic electrolytic metal deposition systems. Many customers test improved Ir-Ta Titanium Anode for Copper Foil Electrolysis solutions for related metal electrolysis projects after verifying stable performance in copper foil workshops.

5. Custom Service & Technical Support for Ir-Ta Titanium Anode for Copper Foil Electrolysis

We are professional manufacturer supplying customized Ir-Ta Titanium Anode for Copper Foil Electrolysis to global copper foil factories. Customers can provide parameters including electrolytic cell size, operating current density, electrolyte temperature, target copper foil thickness and expected service life. Our technical team designs proper substrate structure, coating load and Ir/Ta ratio for each set of Ir-Ta Titanium Anode for Copper Foil Electrolysis. We provide pre-sales technical consultation, sample testing, on-site installation guidance and after-sales operation suggestions for all purchased Ir-Ta Titanium Anode for Copper Foil Electrolysis. Whether you need small trial batch Ir-Ta Titanium Anode for Copper Foil Electrolysis or mass order for new copper foil production line, we support flexible production cycle and stable overseas delivery.

6. Conclusion

As competition intensifies in electrolytic copper foil market, selecting high-performance Ir-Ta Titanium Anode for Copper Foil Electrolysis becomes a critical way to control production cost and improve product quality. Superior material base, mature thermal decomposition coating craft and strict quality testing make our Ir-Ta Titanium Anode for Copper Foil Electrolysis ideal insoluble anode equipment for all kinds of copper foil electrolytic production lines. The Ir-Ta Titanium Anode for Copper Foil Electrolysis delivers low energy consumption, stable electrochemical performance and extended service cycle, bringing tangible economic benefits for copper foil manufacturers worldwide. If you want to obtain technical parameters, quotation and case references of Ir-Ta Titanium Anode for Copper Foil Electrolysis, please contact our sales team for detailed proposal and customized solution of Ir-Ta Titanium Anode for Copper Foil Electrolysis.
