Explosion Bonding Copper Clad Aluminum Plate for Galvanic Corrosion Prevention and Reliable Power Distribution Transition Connections

In power distribution and switchgear equipment, the transition connection between copper busbars and aluminum transformer terminals represents a vulnerable point in the system. When two dissimilar metals—copper and aluminum—come into direct contact, a galvanic couple forms in humid or corrosive environments, with the aluminum side undergoing accelerated corrosion due to its lower electrochemical potential. This leads to rising contact resistance and intensified interfacial heating, which in severe cases can cause connection failure or even equipment damage. Explosion bonding copper clad aluminum plate replaces mechanical clamping with metallurgical bonding, serving as a bimetallic composite material engineered to address the hidden risks in such transition connections.

Galvanic Corrosion Suppression: From Mechanical Contact to Metallurgical Bonding

Traditional copper-aluminum transition connections predominantly employ bolted clamping or friction welding. Bolted connections are prone to stress relaxation under long-term thermal cycling and vibration conditions, with contact surface oxidation leading to progressively increasing resistance. Friction welding, while achieving localized bonding, produces an interfacial compound layer that is relatively thick and brittle, posing a risk of cracking under bending or impact loads. Neither of these mechanical or semi-metallurgical bonding approaches can fundamentally eliminate interfacial gaps, through which corrosive media can still penetrate and trigger galvanic corrosion.

Explosion bonding copper clad aluminum plate achieves full metallurgical bonding between the two metals through the explosive welding process. Explosive welding utilizes controlled detonation energy to drive the copper and aluminum plates into high-velocity oblique collision. The instantaneous high pressure generated at the collision point far exceeds the yield strength of the materials, enabling atomic-scale bonding at the interface through plastic deformation and jetting action. This process introduces no solder or intermediate layers, and the resulting bonding interface exhibits a characteristic wavy interlocking morphology, with bonding strength typically reaching relatively high levels. Since the interface consists of continuous dense metallic bonding without microscopic gaps for corrosive media penetration, it helps fundamentally suppress galvanic corrosion. Actual corrosion resistance performance varies depending on ambient humidity, salt spray concentration, temperature, and current loading conditions in the operating environment.

Performance varies based on specific operating conditions. Actual results depend on the operating environment and working parameters.

Interfacial Thermal Stability: Ensuring Long-Term Reliable Operation Under High Current

Power distribution systems endure sustained current loading and periodic temperature fluctuations during operation. The thermal expansion coefficients of copper and aluminum differ—copper at approximately 17×10⁻⁶/K, aluminum at approximately 23×10⁻⁶/K. Each thermal cycle generates stress at the bonding interface. If bonding strength is insufficient, microcracks will progressively accumulate over long-term cycling, ultimately leading to interlayer delamination and a surge in contact resistance.

The metallurgical bonding interface of explosion bonding copper clad aluminum plate demonstrates relatively high stability under repeated thermal cycling. The wavy interlocking structure effectively increases the bonding area, allowing thermal stress to be dispersed and transferred over a larger region, helping to suppress microcrack initiation and propagation. The copper layer retains the excellent electrical conductivity and corrosion resistance of copper busbars, while the aluminum layer maintains material consistency with aluminum transformer terminals, eliminating the dissimilar metal galvanic pairing problem at its source. The copper-to-aluminum thickness ratio can be custom designed according to current-carrying capacity and mechanical strength requirements. Actual interfacial stability varies depending on the copper-to-aluminum thickness ratio, temperature fluctuation range, current loading, and operating environment.

Engineering Value for the Power Distribution Equipment Market

In the global power distribution equipment market, the long-term reliability of copper-aluminum transition connections is a critical factor affecting the operational safety of switchgear, transformers, and busbar systems. The engineering value of explosion bonding copper clad aluminum plate in this market lies in replacing mechanical connections with metallurgical bonding, reducing the risk of galvanic corrosion and thermal fatigue failure at the design level, and supporting power distribution equipment in achieving long-cycle stable operation.

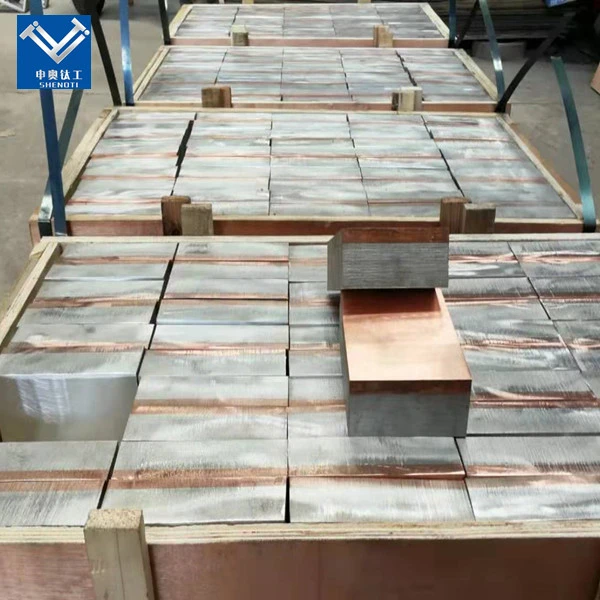

These explosion bonding copper clad aluminum plate products are manufactured using the explosive welding process, with the copper-to-aluminum thickness ratio customizable within a thickness range of 1 mm to 100 mm according to current-carrying requirements and structural design. They are suitable for power distribution components such as copper-aluminum transition bars, switchgear connectors, and transformer terminal pads. It is recommended that power distribution equipment manufacturers and electrical engineering firms conduct field condition testing of explosion bonding copper clad aluminum plates based on their equipment's current loading, operating temperature, and installation environment. By tracking indicators such as contact resistance variation trends, interfacial bonding integrity, and long-term operating performance, the technical compatibility and reliability assurance capability of the bimetallic transition solution in specific application scenarios can be evaluated.

Important Note: The performance descriptions above are based on engineering experience under specific test conditions or internal test data. Differences may exist between laboratory results and actual operating conditions. Actual corrosion resistance performance, interfacial bonding strength, electrical conductivity, and working life vary depending on ambient humidity, salt spray concentration, temperature, current loading, mechanical stress, and system design in the operating environment. Specific numerical values mentioned herein are reference values under typical test conditions. This product is a composite material for power distribution equipment, and its suitability for specific applications must be verified by the user according to actual operating conditions and relevant industry standards. Sufficient compatibility validation prior to bulk procurement is recommended.
