DSA Coated Titanium Anode with Coating Anti-Spalling Performance for High-Temperature, High-Acid Chlorine Generation
2026-06-10 14:44:27
In chlor-alkali production and on-site sodium hypochlorite generators, the anode is continuously exposed to corrosive soluble systems characterized by high temperature, strong acidity, and elevated chloride ion concentrations. The challenge posed by such operating conditions lies not only in initial electrocatalytic activity but also in the coating's anti-spalling capability and overpotential stability over extended operation. The coated titanium anode, known as the Dimensionally Stable Anode (DSA), is an electrochemical core component engineered to meet these demanding requirements.
Coating Anti-Spalling: The Key to Service Life Under Extreme Conditions
In high-temperature, high-acid chlorine generation environments, the anode coating faces multiple failure risks. Nascent chlorine generated during the chlorine evolution reaction possesses strong oxidizing properties and continuously impinges on the coating surface. The acidic electrolyte may penetrate along micro-cracks in the coating, potentially triggering corrosion at the titanium substrate-coating interface and weakening adhesion. Bubble scouring and temperature fluctuations during operation further exacerbate mechanical stress on the coating.
The anti-spalling capability of the coated titanium anode is rooted in the synergistic optimization of coating formulation and preparation processes. The incorporation of oxide components with relatively high stability, such as IrO₂, can help enhance the chemical inertness of the coating in strongly acidic media. Meanwhile, the appropriate addition of inert components such as Ta₂O₅ or TiO₂ may improve thermal expansion compatibility between the coating and the titanium substrate, helping to reduce interfacial stress concentration caused by thermal cycling. At the microstructural level, controlling coating density and crack distribution can help slow the penetration rate of electrolyte along cracks toward the substrate interface. These measures work in concert, helping the coating maintain adhesion integrity with the substrate under typical high-temperature, high-acid chlorine generation conditions, thereby contributing to a reduced risk of premature electrode failure due to coating spalling.
Usage Guideline: Coating anti-spalling performance is closely related to electrolyte temperature, acidity, chloride ion concentration, and current density. Specific performance depends on operating conditions; validation under actual operating conditions is recommended.
Long-Term Overpotential Stability: A Core Indicator for Energy Consumption Control
In chlorine generation processes, the overpotential of the chlorine evolution reaction directly determines the cell voltage and energy consumption level of the electrolysis unit. If the electrocatalytic activity of the coating continuously decays during operation, the overpotential will gradually rise, driving up long-term operating costs.
The coating formulation of the coated titanium anode typically employs RuO₂ as the primary carrier of chlorine evolution activity. RuO₂ exhibits a relatively low overpotential for the chlorine evolution reaction, helping to maintain a lower cell voltage at a given current density. However, the stability of pure RuO₂ coatings under strong acid and high current density conditions is relatively limited. By introducing IrO₂ to form RuO₂-IrO₂ binary or RuO₂-IrO₂-TiO₂ ternary solid solution structures, the electrochemical stability of the coating may be enhanced while maintaining chlorine evolution activity. Under typical operating conditions, a compositionally optimized coating can maintain relatively stable chlorine evolution overpotential over an extended operating period, contributing to the control of long-term energy consumption in chlorine generation processes. Actual overpotential variation trends may differ depending on electrolyte composition, temperature, and operating current density.
Engineering Extension from Classic Chlor-Alkali to Modern Electrochemical Chlorine Generation
The chlor-alkali industry represents a classic application scenario for titanium anodes, where their reliability and long service life have been extensively validated at the engineering level. With the growing demand for on-site sodium hypochlorite generation in water treatment and disinfection, and the advancement of etchant regeneration technology in the electronics industry, the application scope of coated titanium anodes is extending from traditional chlor-alkali electrolyzers to on-site generators and acidic etchant regeneration within the broader electrochemical manufacturing domain.

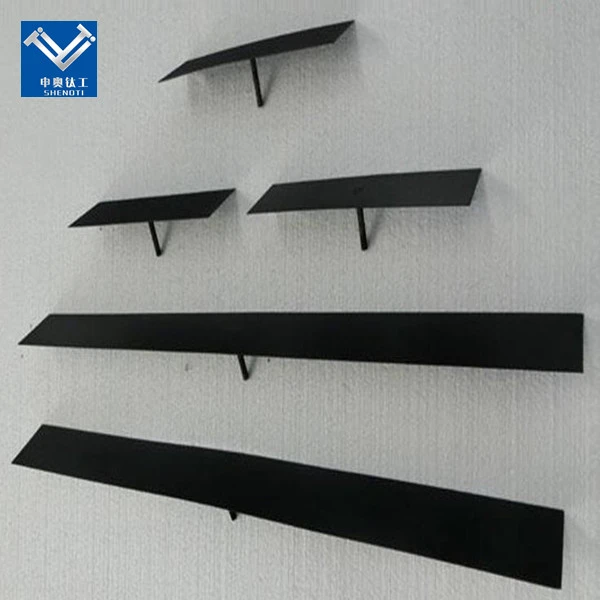

The common characteristic of these emerging application scenarios is that the electrolyte system typically constitutes a corrosive soluble environment of high temperature, strong acid, and elevated chlorine levels. On-site sodium hypochlorite generators require the anode to maintain stable chlorine evolution efficiency in seawater or brine systems. Acidic etchant regeneration demands that the anode maintain structural integrity in highly corrosive solutions containing copper and acid. Our coated titanium anode products, built on high-purity titanium (Grade 1 or Grade 2) substrates with IrO₂, RuO₂, Pt, or mixed metal oxide coatings, can be adapted in terms of coating formulation, geometry, and operating parameters according to the electrolyte characteristics and reactor designs of different application scenarios. The electrodes can be customized into plate, mesh, rod, or tubular configurations, with operating temperature tolerance up to 80°C.
Safety Advisory: This product is intended for chlorine generation and strong acid environments. System design and operation must comply with relevant safety regulations, with appropriate gas handling and protective equipment in place.
We encourage chlor-alkali producers, water treatment engineering firms, and etchant regeneration system integrators to conduct bench-scale or pilot validation of coated titanium anodes based on their specific electrolyte compositions and operating conditions. By tracking indicators such as cell voltage, chlorine evolution current efficiency, and coating appearance changes, the long-term performance of the electrode in the target application environment can be evaluated.
Important Note: The performance descriptions above are based on engineering experience under typical conditions or internal test data. Actual performance may vary depending on electrolyte composition, temperature, acidity, current density, and system design. This product is designed for industrial electrochemical applications. Sufficient compatibility validation prior to bulk procurement is recommended.
