Copper Clad Aluminum Bimetallic Plate for Maintaining Conductivity with Lightweight Transport to Reduce Costs in Wind and Solar Farm Power Transmission

Photovoltaic power stations and wind farms involve extensive cable laying distances, with pure copper conductors facing engineering challenges of heavy weight and high cost during long-distance transportation and on-site installation. Large-span cable trays and busbars place relatively high loading requirements on support structures, leading to increased installation hardware and construction investment. The copper clad aluminum bimetallic plate, with an aluminum core reducing deadweight and a copper layer carrying current, aims to provide a conductor material option that balances conductive performance with lightweight benefits for renewable energy projects.





Skin Effect and Lightweighting: The Cost Reduction Logic of Material Substitution

When alternating current is transmitted in renewable energy farms, the skin effect causes current to concentrate near the conductor surface layer, with relatively low current density in the conductor core. Although pure copper conductors consist entirely of high-conductivity material throughout the cross-section, the copper in the core makes a limited actual contribution to current conduction and primarily serves a structural support function. With the density of copper approximately 3.3 times that of aluminum, this constitutes a significant deadweight and logistics cost burden in long-distance laying scenarios.



The copper clad aluminum bimetallic plate is designed based on this electrical principle to optimize material configuration: the outer layer employs copper with high electrical conductivity as the primary current-carrying medium, utilizing the characteristic that the surface layer carries the majority of current under the skin effect; the core uses aluminum with lower density to replace the copper core and assume the structural function. By appropriately matching the thickness ratio of the copper layer to the aluminum core, substantial weight reduction can be achieved while maintaining current-carrying capacity equivalent to pure copper conductors of the same specification. In cable tray and busbar applications for large-scale wind and solar farms, the reduction in conductor deadweight directly decreases the loading requirements on support structures and installation hardware, while transportation weight and logistics costs are correspondingly reduced. The interface between copper and aluminum is integrally connected through metallurgical bonding processes, supporting the composite plate in maintaining interlayer integrity during bending and connection processing. Actual current-carrying and weight reduction effects vary depending on current frequency, cross-sectional design, and copper-to-aluminum thickness ratio.

Performance varies based on specific operating conditions. Actual results depend on operating conditions and design parameters.



​​​​​​​​​​​​​​



Interfacial Stability: Ensuring Long-Term Electrical Reliability in Outdoor Operation

Wind and solar farm equipment is exposed to outdoor temperature cycling and complex climatic environments over extended periods. The thermal expansion coefficients of copper and aluminum differ, with temperature fluctuations caused by load variations generating thermal stress at the copper-aluminum interface. The copper clad aluminum bimetallic plate achieves integrated connection between the copper layer and aluminum core through metallurgical bonding. The composite interface exhibits a wavy interlocking morphology or diffusion layer structure, effectively increasing the bonding area and mechanical interlocking force, with relatively low interfacial electrical resistance. Under repeated thermal cycling, the metallurgical bonding interface can effectively transfer and disperse stress generated by thermal expansion differences, helping to suppress microcrack initiation and propagation, and supporting long-term stability of electrical connections. The copper-to-aluminum thickness ratio can be custom designed according to specific current-carrying capacity, short-circuit withstand, and mechanical strength requirements.





Engineering Value for the Renewable Energy Infrastructure Market

In the global photovoltaic and wind power markets, the material cost and installation investment of power transmission systems account for a relatively high proportion of total project investment. The engineering value of the copper clad aluminum bimetallic plate in this market lies in replacing copper with aluminum to reduce conductor deadweight, optimizing the comprehensive construction cost of wind and solar farm power transmission from the perspective of reducing support structure loading and logistics costs.

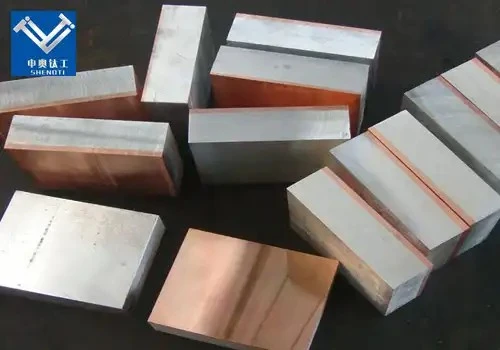

These copper clad aluminum bimetallic plate products are manufactured using metallurgical bonding processes, with the copper-to-aluminum thickness ratio customizable within a thickness range of 1 mm to 100 mm according to current-carrying capacity and mechanical strength requirements. They are suitable for applications such as photovoltaic busbars, wind turbine tower busbars, and substation connection bars. It is recommended that renewable energy project developers and power engineering design firms conduct field condition testing of copper clad aluminum bimetallic plates based on their transmission current ratings, laying spans, and climatic environments. By tracking indicators such as temperature rise, contact resistance variation trends, and long-term operating performance, the technical compatibility and comprehensive economic benefits of the copper aluminum composite solution in specific renewable energy transmission scenarios can be evaluated.





Important Note: The performance descriptions above are based on engineering experience under specific test conditions or internal test data. Differences may exist between laboratory results and actual operating conditions. Actual current-carrying performance, bonding strength, and working life vary depending on the copper-to-aluminum thickness ratio, current frequency, temperature fluctuation range, climatic environment, and system design. This product is a composite material for power transmission equipment, and its suitability for specific applications must be verified by the user according to actual operating conditions and relevant industry standards.
