Titanium Anode for Circulating Water Descaling to Reduce Hardness Saturation and Extend Reverse Osmosis Membrane Life

​​​​​​​In zero liquid discharge plants and reclaimed water reuse systems, reverse osmosis membranes face severe scaling challenges. When feed water has high hardness levels, calcium and magnesium ions become concentrated and polarized on the membrane surface, causing the Langelier Saturation Index to rise. Sparingly soluble salts such as calcium carbonate and calcium sulfate deposit on the membrane surface, leading to decreased water production rates, increased differential pressure, and shortened membrane element service life. Electrochemical descaling technology provides a pretreatment solution by reducing feed water hardness saturation upstream of the RO system, with the titanium anode for circulating water descaling serving as its core component.

Electrochemical Hardness Reduction: Cathodic Alkalization Driving Solid-Phase Calcium and Magnesium Precipitation

Electrochemical descaling technology utilizes the water electrolysis reaction to pre-remove a portion of hardness ions before the RO feed water enters the membrane system. In an electrolysis unit with the titanium anode at its core, the water reduction reaction on the cathode surface generates hydroxide ions and releases hydrogen gas, forming a localized high-pH micro-zone adjacent to the cathode. Within this micro-zone, bicarbonate ions convert to carbonate ions, prompting calcium and magnesium ions to preferentially crystallize and precipitate as calcium carbonate and magnesium hydroxide on the cathode surface, thereby reducing the hardness saturation of the water body.

The titanium anode for circulating water descaling carries out the oxygen evolution reaction in this process, providing sustained and uniform electrochemical driving force for cathodic alkalinity control. The mixed metal oxide coating on the anode surface can maintain a relatively low oxygen evolution overpotential across a broad current density range, contributing to controlled system operating energy consumption. After electrochemical pretreatment, the feed water Langelier Saturation Index can be effectively reduced, with a portion of calcium and magnesium hardness converted to solid phase and separated from the water, thereby weakening the scaling driving force entering the RO membrane surface. Periodic removal of cathode deposits through mechanical scraping or polarity reversal supports continuous online system operation. Actual hardness reduction effectiveness and saturation index control capability vary depending on feed water hardness, alkalinity, pH, and operating current density.

Performance varies based on specific operating conditions. Actual results depend on feed water quality and operating parameters.

Anode Design: Adapting to High-Hardness, High-Salinity RO Concentrate Environments

In reverse osmosis pretreatment and wastewater recovery applications, the anode must not only treat high-hardness makeup water but may also face high-salinity environments from RO concentrate recirculation. Chloride ions may be oxidized to active chlorine during electrolysis, causing chemical attack on both the coating and substrate. Furthermore, calcium and magnesium ions in high-hardness water may deposit on the anode surface, affecting the accessibility of oxygen evolution active sites.

The titanium anode for circulating water descaling employs high-purity titanium as the substrate. The titanium substrate can form a dense passive film under anodic polarization conditions, providing structural stability for the electrode in chloride-containing high-salinity water. The coating adopts an electrocatalytic active layer containing metal oxides such as IrO₂ and RuO₂. The IrO₂ component exhibits high electrochemical stability under oxygen evolution conditions, contributing to maintaining the catalytic activity of the coating during long-term operation. The coating and substrate achieve high bonding strength through optimized pretreatment processes, supporting the maintenance of structural integrity in complex water quality over extended periods. Through periodic polarity reversal, calcareous deposits on the electrode surface can be removed, maintaining oxygen evolution efficiency and hardness reduction performance. Actual working life varies depending on feed water hardness, chloride ion concentration, temperature, and operating mode.

Engineering Value for the RO Pretreatment Market

In the global zero liquid discharge and reclaimed water reuse markets, RO membrane scaling control is a critical link affecting system operating costs and membrane replacement cycles. The engineering value of the titanium anode for circulating water descaling in this market lies in combining electrochemical hardness reduction with RO pretreatment, contributing to reduced membrane surface scaling rates and supporting membrane systems in maintaining relatively high water production rates over extended periods.

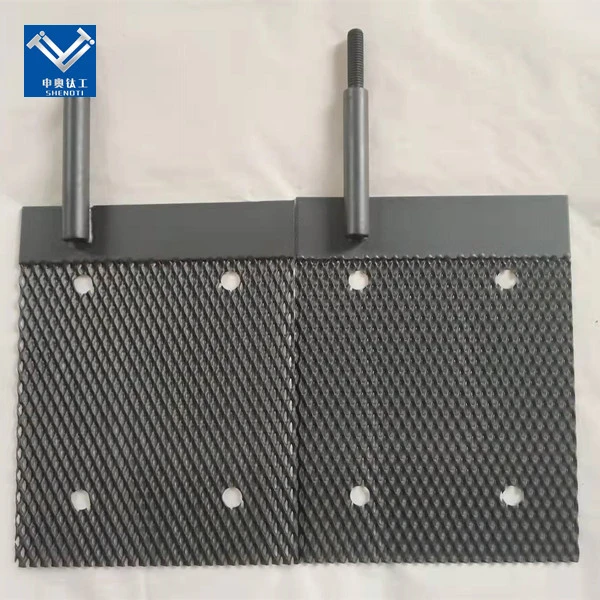

Electrochemical pretreatment solutions use electric current as the driving force, helping to reduce antiscalant and acid dosing requirements and lowering the potential impact of chemical agents on membranes. These titanium anode products are built on high-purity titanium substrates and coated with metal oxide systems such as IrO₂ and RuO₂, and can be customized into plate, mesh, tubular, and other geometric configurations to suit RO front-end electrochemical descaling devices of different scales. It is recommended that water treatment operators and RO system integrators conduct field condition testing of titanium anodes for circulating water descaling based on their feed water hardness, alkalinity, and recovery rate targets. By tracking indicators such as Langelier Saturation Index variation, RO membrane differential pressure trends, and long-term anode operating performance, the technical compatibility and comprehensive benefits of the electrochemical pretreatment solution in specific application scenarios can be evaluated.

Important Note: The performance descriptions above are based on engineering experience under specific test conditions or internal test data. Differences may exist between laboratory results and actual operating conditions. Actual hardness reduction effectiveness, working life, and the extension effect on RO membrane life vary depending on feed water quality, hardness, alkalinity, chloride ion concentration, temperature, recovery rate, operating parameters, and system design. This product is an industrial water treatment equipment component, and its suitability for specific applications must be verified by the user according to actual operating conditions and relevant industry standards.
