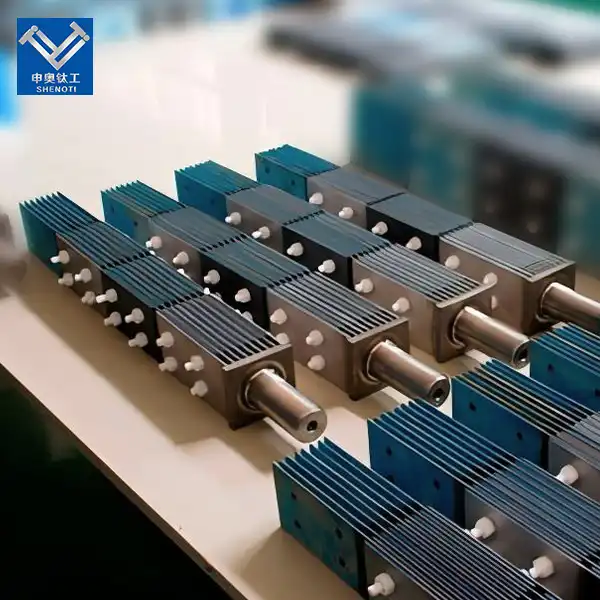

Tubular Electrolytic Cell for Cyclone Electrowinning Technology

​​​​​​​Tubular Electrolytic Cell for Cyclone Electrowinning Technology

In cyclone electrowinning technology, the tubular electrolytic cell enhances mass transfer through a high-speed swirling flow field, enabling efficient electrowinning extraction of metal ions at low concentrations. Our Tubular Electrolytic Cell for Cyclone Electrowinning Technology at Baoji City ShenAo Metal Materials Co., Ltd. is designed specifically for applications in hydrometallurgy, metal recovery, and valuable metal extraction from industrial wastewater. It uses Grade 1 or Grade 2 pure titanium for the cell body and electrode substrates, with an iridium-tantalum mixed metal oxide catalytic coating on the anode surface. The tubular coaxial structure, combined with an optimized flow channel design, creates a high-speed swirling flow between the anode and cathode, effectively reducing the diffusion layer thickness and increasing the limiting current density. The anode coating maintains stable oxygen evolution activity and chemical stability in acidic electrolytes, minimizing the risk of metal ion dissolution. The complete electrolytic cell is suitable for the cyclone electrowinning of copper, nickel, cobalt, silver, and other metals, providing a reliable equipment-level solution for your metal recovery and resource utilization applications.

Technical Specifications

Why Choose Our Titanium Anodes?

• Cyclone Design for Enhanced Mass Transfer and Deposition Efficiency
  The electrolyte passes through the annular gap of the tubular electrolytic cell at high velocity in a cyclone flow state, creating strong liquid turbulence at the electrode surface. This forced convection significantly reduces the diffusion layer thickness, alleviating concentration polarization under high current density conditions and enabling metal ions to deposit uniformly on the cathode surface at a faster rate. Compared to conventional plate-type electrolytic cells, the cyclone tubular structure demonstrates better mass transfer efficiency and current efficiency when processing low-concentration metal solutions.
• Compact Structure for Reduced Equipment Footprint
  The concentric tubular layout integrates the anode and cathode into a compact, self-contained electrolysis unit, with effective electrode area per unit far exceeding that of plate-type cells occupying the same footprint. Multiple tubular cells can be flexibly combined in series or parallel configurations and rapidly scaled according to production capacity requirements, making them particularly suitable for production line upgrades with limited space and modular new-build projects.
• Enclosed Operation for Improved Workplace Environment
  Cyclone electrowinning takes place within a sealed tubular chamber, allowing acid mist, gases, and heat generated during electrolysis to be collected and treated through centralized piping. This design contributes to improved workshop air quality, reduces acid mist corrosion on surrounding equipment and building structures, and lowers the risk of operator exposure to hazardous gases.
• Modular Design for Easy Maintenance and Expansion
  Each tubular electrolytic cell operates as an independent module that can be individually disassembled, inspected, or replaced without affecting the continuous operation of other units. The anode titanium tube can undergo recoating treatment when the coating reaches the end of its service life, and the cathode base tube can be reused, helping you reduce equipment operation and maintenance costs over the full lifecycle.

Real-World Applications

• Non-Ferrous Hydrometallurgical Extraction and Electrowinning Refining: Used for electrowinning extraction of metals from leach solutions and electrolytic refining of crude metals in copper, nickel, zinc, and cobalt production, covering copper electrowinning from heap leach pregnant solutions of low-grade copper ores, nickel-cobalt separation via electrowinning from nickel laterite hydrometallurgical intermediates, zinc electrowinning from zinc sulfide concentrate leachates, and electrolytic purification of cobalt intermediates, utilizing high-speed cyclonic flow to enhance mass transfer efficiency and improve cathode product compactness.
• Metal Resource Recovery from Industrial Waste Liquids: Used for resource recovery from metal-bearing industrial waste liquids including electroplating wastewater, etching waste solutions, and spent catalyst leachates, covering selective copper electrowinning recovery from printed circuit board acidic and micro-etching solutions, closed-loop nickel recovery from electroplating nickel rinse water, platinum group metal enrichment and recovery from spent catalyst acid leach solutions, and separation and recovery of iron, nickel, and chromium from stainless steel pickling waste liquor.
• Electronic and New Energy Material Preparation: Used for electrolytic preparation of electronic-grade and new energy materials such as high-purity copper and ultrafine metal powders, covering electrodeposition of high-purity copper powder for semiconductor packaging, cyclone-assisted preparation of ultra-thin electrolytic copper foil for lithium-ion battery current collectors, dendritic copper powder electrolytic deposition for electromagnetic shielding, and electrochemical synthesis of ultrafine silver powder for photovoltaic paste applications.
• Electrochemical Treatment of Mineral Processing and Metallurgical Wastewater: Used for high-efficiency purification of acid mine drainage, tailings pond leachate, and hydrometallurgical barren solutions, covering copper recovery and compliance discharge via cyclone electrowinning from high-copper-content mine wastewater, electrochemical removal of heavy metals from cyanide-containing wastewater in gold mining operations, cyclone electrowinning enrichment of rhenium and other rare and precious metals from molybdenum flotation wastewater, and alkali recovery with metal removal from tungsten smelting wastewater.

The ShenAo Advantage

18 Years of Manufacturing Excellence

Since 2008, we've specialized in valuable metal coated titanium anodes from our office in Baoji's "China Titanium Valley." Our develop bimetallic hazardous welding innovation and progressed coating forms provide items you can trust.

Customization for Your Correct Needs

Every generation line is diverse. We give custom fitted arrangements coordinating your particular current thickness necessities, electrolyte composition, and operational parameters. Whether you require little bunch testing or full-scale generation amounts, we convey on time.

Cost-Effective Lifecycle Management

When coating exhaustion happens, you do not dispose of the whole anode. Our proficient recoating benefit strips the ancient oxide layer, sandblasts the substrate, and reapplies new MMO coating. This expands resource life and decreases your add up to taken a toll of proprietorship considerably.

Frequently Asked Questions

Q: What is the core difference between cyclone tubular electrolytic cells and conventional plate-type cells?
A: The core difference lies in the electrolyte flow pattern and mass transfer efficiency. In conventional plate-type cells, the electrolyte typically flows slowly between electrode plates in a laminar state, resulting in a thicker diffusion layer and noticeable concentration polarization. The cyclone tubular cell creates strong liquid turbulence at the electrode surface through forced cyclone flow, significantly reducing the diffusion layer thickness and thus enabling operation at higher current densities, making it particularly suitable for processing low-concentration metal solutions. Additionally, the tubular structure operates in an enclosed manner, with better acid mist emission control than open plate-type cells.

Q: How do I select the anode coating type based on the process solution?
A: It primarily depends on the acidity, anion type, and oxygen evolution proportion of the solution. Sulfate systems typically use iridium-tantalum coatings, which remain stable under strong acid and high oxygen evolution conditions. Chloride systems can use ruthenium-iridium coatings to balance chlorine and oxygen evolution activity. Solutions containing organics or special additives require coating compatibility assessment. You can provide your solution composition and operating parameters, and our engineers will recommend a matched coating solution.

Q: How can the production capacity of tubular electrolytic cells be scaled?
A: Tubular electrolytic cells adopt a modular design, with each unit operating as an independent electrolysis cell. Capacity expansion is flexible: first, by increasing the number of parallel branches while maintaining constant flow per tube; second, by increasing the number of tubes in series per group to improve single-pass metal recovery; third, through hybrid configurations tailored to site conditions. We can provide a recommended tube arrangement plan and equipment quantity based on your target processing capacity and metal concentration.

Q: How should anode tubes be handled when the coating reaches the end of its service life?
A: The titanium tube substrate remains stable in acidic electrolytes. The old coating can be chemically stripped, and once the substrate passes inspection, it can be recoated. We offer a full-service process including incoming inspection of used anode tubes, coating stripping, substrate treatment, and recoating, restoring performance to new anode tube levels. The cathode base tube can similarly be reused after cleaning and surface treatment.
