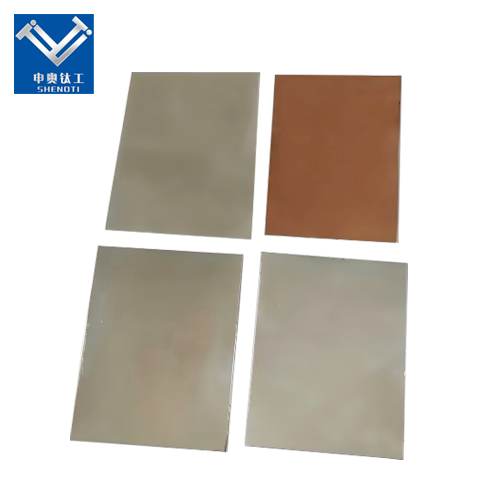

Ag Cu Clad Plate

Ag Cu Clad Plate: Premium Bimetallic Composite Material for High-Performance Electrical Applications

Our Ag Cu Clad Plate delivers exactly that. Manufactured through advanced explosive welding technology, this bimetallic composite material features a metallurgically bonded silver layer on a copper substrate. With customizable thickness from 0.1 mm to 5 mm and cladding ratios ranging from 5% to 50% silver by thickness, you get the corrosion resistance and low contact resistance of silver where it matters most—at the contact interface—while maintaining the cost-efficiency of copper as the base material. Our bond strength exceeds 150 MPa, ensuring no delamination during stamping, bending, or thermal cycling operations.

What Makes Our Silver-Copper Clad Material Different?

You confront a common challenge in electrical designing: unadulterated silver costs as well much for expansive components, but immaculate copper oxidizes quickly, expanding contact resistance over time.

Our arrangement bridges this hole perfectly.

The item we create makes a changeless diffusion-bonded interface. This isn't electroplating. The cladding prepare guarantees the layers won't peel, rankle, or partitioned beneath tall warm loads or mechanical stress.

You get electrical conductivity surpassing 100% IACS at the surface. The in general warm conductivity remains astonishingly tall at 390-400 W/m·K. Bond judgment is confirmed through ultrasonic testing over 100% of the surface area.

The fabricating handle at our Baoji office employments controlled climate tempering. This keeps up the oxygen-free properties of your copper substrate. We've culminated this strategy over 17 a long time of nonstop generation.

Technical Specifications

Where You Can Use Silver Copper Composite Plates?

High-Voltage Switchgear and Contactors

In control dissemination lattices, your busbar connectors and contact tips require to withstand rehashed mechanical exchanging. The silver surface gives remarkable circular segment disintegration resistance. Your hardware keeps going longer with diminished upkeep intervals.

Renewable Energy and EV Charging Infrastructure

High-current DC-DC converters in sun powered inverters and electric vehicle charging stations create critical warm. Our bimetallic composite plates offer the moo contact resistance you require to anticipate overheating in compact control modules. They perform dependably through extraordinary warm cycling.

Precision Industrial Instrumentation

Chemical preparing plants uncover your sensors and terminals to destructive situations. The silver layer gives chemical idleness against sulfur-bearing gasses. In the mean time, the copper center guarantees fast flag transmission and warm dissemination. Your estimations remain exact where standard plated components would fall flat.

Product production process

Why Choose ShenAo Metal Materials?

17 Years of Manufacturing Excellence

Since 2008, we've specialized in non-ferrous metal composite materials right here in China's Titanium Valley. Our explosive welding technology is mature and reliable.

Customization That Fits Your Needs

You have unique technical requirements. We provide customized services for various specifications. Whether you need small batch testing or large-scale production, we deliver on time.

Strict Quality Control

Every Ag Cu Clad Plate undergoes comprehensive testing. We maintain strict process technology standards. Our quality management system ensures every product meets industry specifications.

Professional Technical Support

Our experienced R&D team works closely with your actual needs. We explore new processes and application areas together. You get solutions that truly work for your challenges.

​​​​

​​​​

​​​​

​​​​

​​​​

​​​​

​​

​​​​

​​​​

Application Industries

​​​​​​​​​​​​​​​	​​​​​​​​​​​​​​​​	​​​​​​​​​​​​​​​​	​​​​​​​​​​​​​​​​
​​​​​​​​​​​​​​	​​​​​​​​​​​​​​	​​​​​​​​​​​​​​	​​​​​​​​​​​​​​

Our Factory
​​​​​​​​​​​​​​​​​

Our Patents and Honors

​​​​​​​​​​​​

​​​Our Packaging

​​​​	​​​​	​​​​	​​​​	​​​​
​​​	​​​	​​​	​​	​​​

​Frequently Asked Questions

Q: Will the plate delaminate amid high-temperature brazing?

A: No. When made with our diffusion-bonded layer, the plate withstands brazing temperatures up to 800°C without separation.

Q: How does cladding compare to silver plating?

A: Cladding offers a much thicker useful layer—measured in microns to millimeters versus plating. This comes about in altogether higher circular segment disintegration resistance and longer benefit life.

Q: Is this fabric RoHS compliant?

A: Yes. We offer cadmium-free combinations that completely comply with worldwide natural regulations.

Q: What thickness proportions are available?

A: We customize proportions from 5/95 to 50/50 silver-to-copper, depending on your application's electrical stack prerequisites.

Q: How do you protect the copper base during manufacturing?

A: We use controlled atmosphere annealing and precise reduction ratios. This maintains the oxygen-free or electrolytic tough pitch properties of the copper substrate.

Q: Can you provide custom dimensions?

A: Absolutely. While our standard size is 1000 mm × 500 mm × 3 mm, we manufacture custom sizes to match your specific application needs.

Contact Us for Your Silver-Copper Composite Solution

Ready to discuss your project requirements for Ag Cu Clad Plate? Reach out to our team at zh@baojiti.com.cn and we'll provide professional guidance tailored to your needs.
