Ag alloy Cu alloy Clad Plate
Thickness:Customizable (Typically 0.5mm-5mm)、Customizable (Typically 1mm-10mm)
Density:10.5 g/cm³、8.96 g/cm³
Tensile Strength:≥250 MPa、≥200 MPa
Elongation:≥25%、≥30%
Electrical Conductivity:≥60% IACS (International Annealed Copper Standard)、≥50% IACS
Corrosion Resistance:Excellent in seawater and chemical environments、Good resistance in most industrial conditions
Operating Temperature:Up to 400°C、Up to 300°C
Customizations Available:Yes, based on client needs、Yes, based on client needs

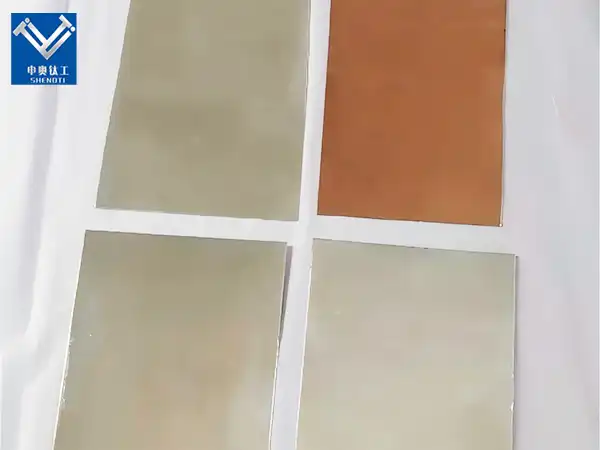

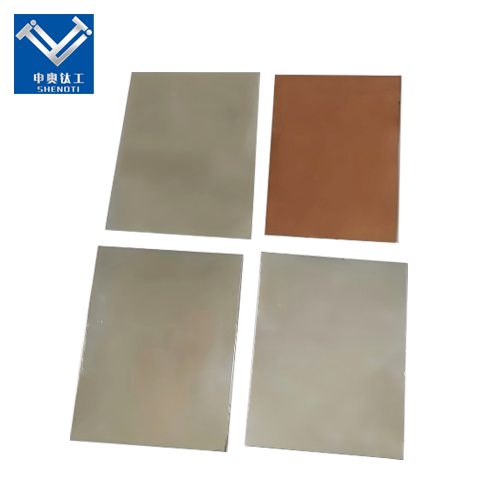

Ag Alloy Cu Alloy Clad Plate - High-Performance Composite Contact Material
When you need exceptional electrical performance without breaking your budget, Ag alloy Cu alloy Clad Plate delivers the perfect balance. At Baoji City ShenAo Metal Materials Co., Ltd., we manufacture enterprise-grade clad plates with tensile strength ≥250 MPa for silver alloys and ≥200 MPa for copper alloys, electrical conductivity reaching ≥60% IACS and ≥50% IACS respectively, and operating temperatures up to 400°C and 300°C. With customizable thickness ranging from 0.5mm-10mm and elongation rates of ≥25-30%, our solutions meet demanding industrial specifications while maintaining cost-efficiency.
What Makes Our Silver-Copper Clad Plate Special?
You confront a common challenge: immaculate silver contacts offer amazing execution but deplete your budget. Copper alone can't handle bend disintegration in exchanging applications. That's where our clad plate innovation changes everything.
We metallurgically bond utilitarian silver amalgam layers—including AgNi, AgSnO2, and AgZnO—directly to high-conductivity copper substrates like C1100 or C1020. This isn't basic plating. It's an atomic-level combination made through accuracy cold/hot rolling and unstable welding processes.
The result? You get silver's prevalent bend resistance and contact soundness on the surface. In the mean time, the copper base gives basic quality, fabulous warm scattering, and reasonableness. This item anticipates contact welding and expands component life altogether past conventional materials.
Your exchanging gadgets work harder and final longer. Your costs remain sensible.
Technical Specifications
|
Property
|
Ag Alloy Layer
|
Cu Alloy Substrate
|
|
Thickness
|
Customizable (Typically 0.5mm-5mm)
|
Customizable (Typically 1mm-10mm)
|
|
Density
|
10.5 g/cm³
|
8.96 g/cm³
|
|
Tensile Strength
|
≥250 MPa
|
≥200 MPa
|
|
Elongation
|
≥25%
|
≥30%
|
|
Electrical Conductivity
|
≥60% IACS
|
≥50% IACS
|
|
Corrosion Resistance
|
Excellent in seawater and chemical environments
|
Good resistance in most industrial conditions
|
|
Operating Temperature
|
Up to 400°C
|
Up to 300°C
|
|
Customizations Available
|
Yes, based on client needs
|
Yes, based on client needs
|
Where You'll Benefit Most?
Industrial Low-Voltage Switchgear
Your circuit breakers and heavy-duty contactors handle punishing conditions. The silver alloy surface withstands intense arc erosion during switching operations. The copper base carries high continuous current without overheating. This combination means fewer failures and reduced maintenance costs.
Automotive Power Electronics
EV battery management systems and high-current relays demand reliability. Engine compartment heat and constant vibration put enormous stress on electrical contacts. Our Ag alloy Cu alloy Clad Plate maintains stable performance through it all, ensuring your power electronics operate safely throughout the vehicle's lifetime.
Precision Control Applications
Your customers expect reliable thermostats, HVAC controls, and water heater switches. They need devices that cycle 100,000+ times without degradation. Our clad plates deliver consistent electrical contact and precise temperature control, building trust in your brand.
 |
 |
 |
 |
 |
 |
 |
Product production process
Why ShenAo Metal Materials?
17 Years of Proven Excellence
Since 2008, we've specialized in non-ferrous metal composite materials from China's Titanium Valley in Baoji. Our mature bimetallic explosive welding technology and strict quality management ensure every plate meets exacting standards.
Complete Customization
Need a specific thickness ratio? We offer customizable configurations from 5/95 to 50/50 silver-to-copper ratios. Whether you require small test batches or large-scale production, we adapt to your electrical load requirements.
Quality You Can Measure
We maintain controlled atmosphere annealing and precise reduction ratios. This preserves the oxygen-free properties of your copper substrate while creating a permanent metallurgical bond. Our processes comply with international standards, delivering consistent results batch after batch.
Technical Partnership
Our experienced R&D team works directly with you. We understand your application challenges and develop solutions that fit your specific needs. This collaborative approach has earned us partnerships with hundreds of equipment manufacturers worldwide.
 |
 |
 |
 |
 |
 |
 |
 |
 |
Application Industries
 |
 |
 |
 |
 |
 |
 |
 |
Our Factory
Our Patents and Honors

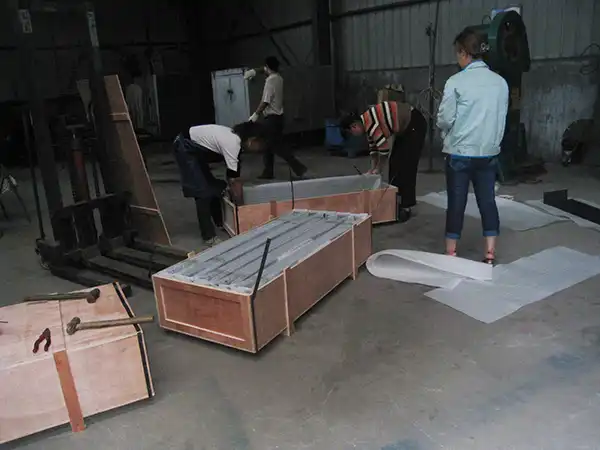

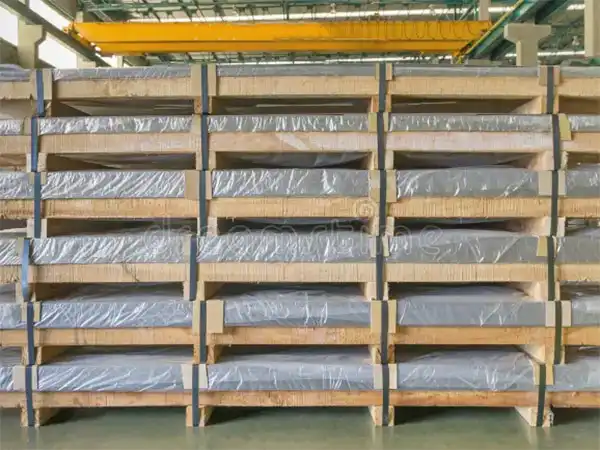

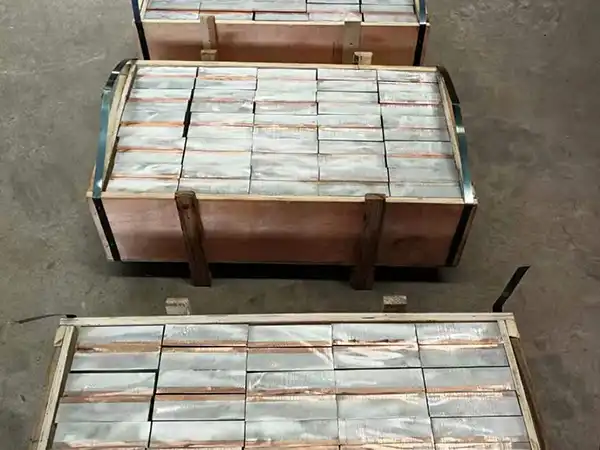

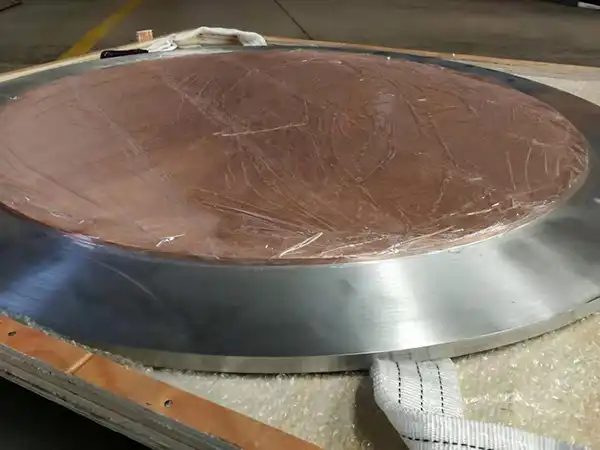

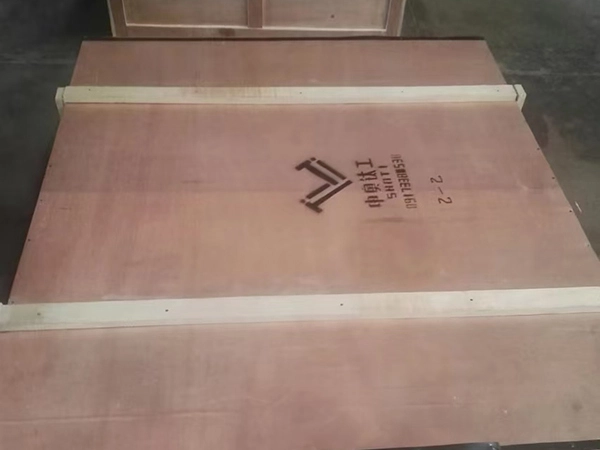

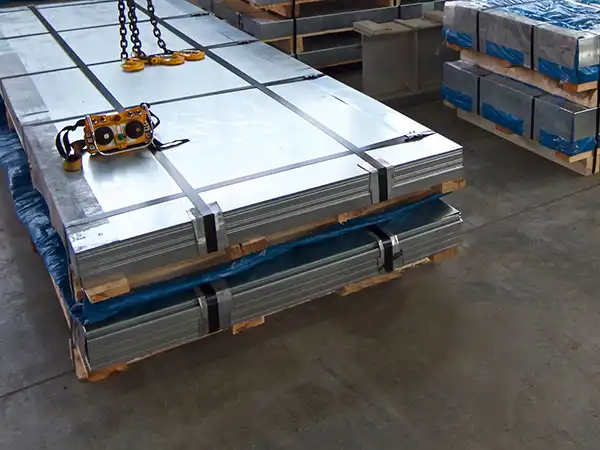

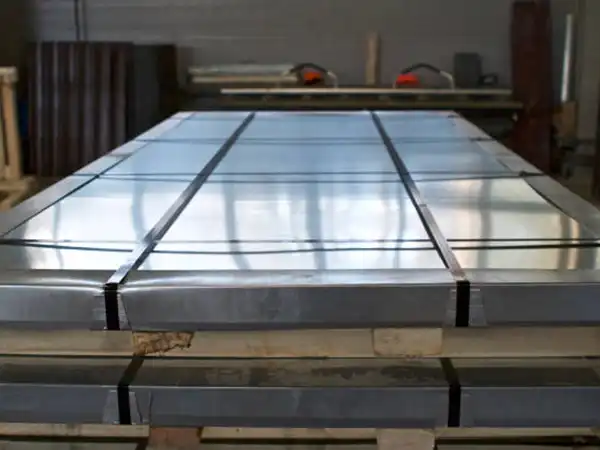

Our Packaging
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Frequently Asked Questions
Q: Does the clad plate delaminate during high-temperature brazing?
A: No. When manufactured correctly with a diffusion-bonded layer, the plate withstands brazing temperatures up to 800°C without separation.
Q: How does this compare to silver plating?
A: Cladding offers a much thicker functional layer—measured in microns to millimeters—compared to thin plating. You get significantly higher arc erosion resistance and longer service life.
Q: Is your clad plate RoHS compliant?
A: Absolutely. We offer cadmium-free alloys such as AgSnO2 and AgNi that fully comply with global environmental regulations.
Q: What thickness ratios are available?
A: Ratios are customizable, typically ranging from 5/95 to 50/50 silver-to-copper, depending on your application's electrical load requirements.
Q: How do you preserve copper conductivity during manufacturing?
A: We use controlled atmosphere annealing and precise reduction ratios. This maintains the oxygen-free or electrolytic tough pitch properties of the copper substrate throughout the cladding process.
Contact Us
Ready to enhance your electrical components with superior Ag alloy Cu alloy Clad Plate? Reach out to our team at zh@baojiti.com.cn for technical specifications and custom solutions.
