Copper Aluminum Clad Pad for Cost Reduction, Weight Saving, and Capacity Expansion in Distribution Busbars

Busbars in high and low voltage electrical cabinets have long been burdened by the weight and cost of pure copper. In large-span installation scenarios, the deadweight of pure copper busbars imposes excessive loading on support insulators and cabinet structures, while copper price fluctuations continuously drive up the manufacturing cost of distribution equipment. The copper aluminum clad pad, with an aluminum core providing structural support and a copper layer carrying current, is a composite conductive material engineered to address the dual requirements of cost reduction, weight saving, and current-carrying performance in busbar applications.





Skin Effect Utilization: The Cost Reduction Logic of Copper Aluminum Clad Pads

When alternating current is transmitted through distribution busbars, the current is not uniformly distributed across the conductor cross-section but tends to concentrate within a certain depth near the conductor surface. This skin effect results in relatively low current density in the conductor core. Although pure copper busbars consist entirely of high-conductivity material throughout the cross-section, the copper in the core makes a limited actual contribution to current conduction and primarily serves a structural support function.

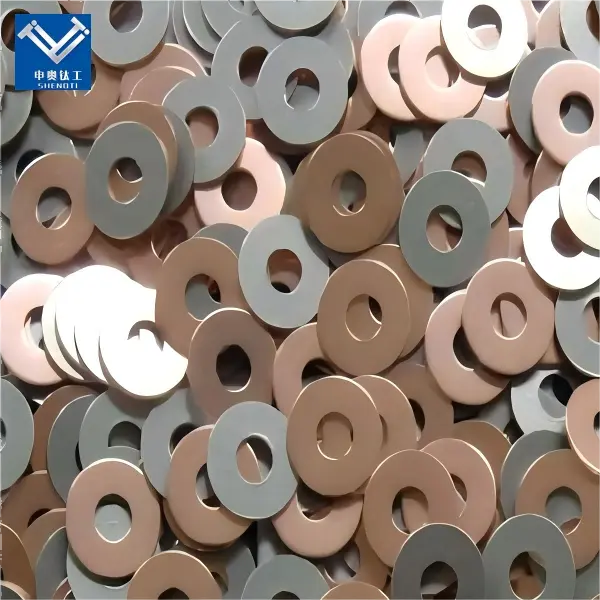

The copper aluminum clad pad is designed based on this electrical principle to redistribute materials: the outer layer employs copper with high electrical conductivity as the primary current-carrying medium, fully utilizing the characteristic that the surface layer carries the majority of current under the skin effect; the core uses aluminum, with a density only one-third that of copper, to replace the copper core and assume the structural support function. By adjusting the copper-to-aluminum thickness ratio and increasing the total cross-sectional area, the copper aluminum clad pad can achieve substantial reductions in weight and material cost while maintaining current-carrying capacity equivalent to pure copper busbars of the same specification. The interface between copper and aluminum is achieved through metallurgical bonding via explosive welding or roll bonding processes, with bonding strength typically reaching relatively high levels, supporting the composite material in maintaining interlayer integrity during subsequent processing such as punching and bending. Actual current-carrying performance and energy-saving effects vary depending on current frequency, cross-sectional design, copper-to-aluminum thickness ratio, and operating temperature.

Performance varies based on specific operating conditions. Actual results depend on operating conditions and design parameters.



​​​​​​​



Interfacial Bonding: Ensuring Long-Term Electrical Stability in Operation

Distribution busbars endure sustained current-induced thermal effects and periodic temperature fluctuations throughout their service life. The thermal expansion coefficients of copper and aluminum differ—copper at approximately 17×10⁻⁶/K, aluminum at approximately 23×10⁻⁶/K. Each temperature fluctuation caused by load variation generates thermal stress at the copper-aluminum interface. If bonding quality is insufficient, long-term accumulation will lead to interfacial microcrack initiation and interlayer delamination, with contact resistance rising accordingly and posing localized overheating risks.



The copper aluminum clad pad achieves integrated connection between the copper layer and aluminum core through metallurgical bonding processes. The composite interface exhibits a characteristic wavy interlocking morphology or diffusion layer structure, effectively increasing the bonding area and mechanical interlocking force between the two metals, with relatively low interfacial electrical resistance. Under repeated thermal cycling, the metallurgical bonding interface can effectively transfer and disperse stress generated by thermal expansion differences, helping to suppress microcrack initiation and propagation, and supporting the stability of electrical connections during long-term operation. The copper-to-aluminum thickness ratio can be custom designed according to specific current-carrying capacity, short-circuit withstand requirements, and mechanical strength. Actual interfacial stability and electrical performance vary depending on the copper-to-aluminum thickness ratio, temperature fluctuation range, current loading, and installation environment.





Engineering Value for the Distribution Equipment Market

In the global distribution equipment market, the material cost of busbars accounts for a relatively high proportion of the total cost of switchgear and distribution cabinets. The engineering value of the copper aluminum clad pad in this market lies in replacing copper with aluminum to reduce material density and cost while compensating for conductivity differences through increased cross-sectional area, supporting distribution equipment manufacturers in reducing product weight and material input while maintaining current-carrying performance.



These copper aluminum clad pad products are manufactured using explosive welding or roll bonding processes, with the copper-to-aluminum thickness ratio customizable within a thickness range of 1 mm to 100 mm according to current-carrying capacity, short-circuit withstand, and mechanical strength requirements. They are suitable for applications such as high and low voltage switchgear busbars, distribution cabinet main busbars, and high-current transition connection bars. It is recommended that distribution equipment manufacturers and electrical engineering design firms conduct field condition testing of copper aluminum clad pads based on their busbar rated current, short-circuit withstand requirements, and installation span. By tracking indicators such as temperature rise data, contact resistance variation trends, and long-term operating performance, the technical compatibility and comprehensive economic benefits of the copper aluminum composite solution in specific busbar application scenarios can be evaluated.





Important Note: The performance descriptions above are based on engineering experience under specific test conditions or internal test data. Differences may exist between laboratory results and actual operating conditions. Actual current-carrying performance, bonding strength, and working life vary depending on the copper-to-aluminum thickness ratio, current frequency, temperature fluctuation range, installation environment, and system design. Cost comparisons and performance data mentioned herein are reference values under specific conditions. This product is a composite material for power distribution equipment, and its suitability for specific applications must be verified by the user according to actual operating conditions and relevant industry standards.
