Copper Aluminum Clad Panel Price: Professional Solutions for Your Industrial Needs

At Baoji City ShenAo Metal Materials Co., Ltd., we specialize in manufacturing high-performance bimetallic composite panels that deliver 40-60% cost savings compared to solid copper alternatives. Our Copper aluminum clad panel price maintains 60-80% IACS electrical conductivity while achieving a bonding strength exceeding 50 MPa. With customizable cladding thickness from 0.5mm to 10mm and tensile strength ranging 200-300 MPa, you get enterprise-grade performance tailored to your exact specifications. Since 2008, we've served hundreds of manufacturers from our facility in China's Titanium Valley, combining explosive welding technology with rigorous quality standards.

Understanding What Affects Copper Aluminum Clad Panel Price

The item isn't fair a basic number. It's a energetic calculation affected by a few key factors.

Raw fabric costs change day by day. The London Metal Trade and Shanghai Prospects Trade records for copper and aluminum straightforwardly affect your last cite. Preparing premiums at that point get included based on your specifications.

Your customization choices matter essentially. Cladding thickness, board measurements, and copper-to-aluminum proportions all impact the add up to venture. A 20:80 proportion offers distinctive estimating than a 30:70 configuration.

Volume plays a pivotal part as well. Bigger orders advantage from economies of scale, diminishing your per-unit fetched significantly.

Technical Specifications That Define Value

Parameter	Specification	Your Benefit
Base Materials	Copper & Aluminum	Optimal conductivity-to-weight ratio
Cladding Thickness	0.5mm - 10mm (Customizable)	Precision-matched to your application
Electrical Conductivity	60-80% IACS	Near-copper performance at lower cost
Thermal Conductivity	140-160 W/m·K	Excellent heat dissipation
Tensile Strength	200-300 MPa	Durable under mechanical stress
Bonding Strength	≥50 MPa	No delamination risk
Density	Cu: 8.96 g/cm³, Al: 2.7 g/cm³	35-40% lighter than pure copper
Corrosion Resistance	Excellent	Ideal for marine and industrial use
Welding Compatibility	TIG, MIG, Laser	Flexible fabrication options

Why Choose Our Copper Aluminum Clad Panels?

Taken a toll Effectiveness Meets Performance

You're confronting a common challenge: copper conveys the conductivity you require, but the budget doesn't extend that distant. Our bimetallic boards illuminate this precisely.

The metallurgical holding prepare makes an indistinguishable copper-aluminum interface. Not at all like copper-plated choices that peel beneath stretch, our dangerous welding innovation guarantees lasting adhesion.

Seventeen A long time of Fabricating Excellence

Since building up operations in 2008, we've refined our generation forms to convey steady quality. Our area in Baoji's High-tech Mechanical Advancement Zone gives us get to to premium crude materials and progressed fabricating capabilities.

Every board experiences strict quality testing. We confirm holding quality, conductivity estimations, and dimensional precision some time recently shipping.

Customization Without Compromise

Your extend has one of a kind prerequisites. We do not accept in one-size-fits-all solutions.

Need particular board measurements? We cut to your correct estimations. Require specific cladding proportions? We alter the copper-to-aluminum volume to coordinate your conductivity needs. Extraordinary surface medicines? Our specialized group can suit that as well.

Product production process

Applications Where Our Panels Excel

Electrical Engineering Projects

High-frequency AC applications benefit enormously from the skin effect. Current flows through the outer copper layer, giving you pure-copper performance at significantly reduced copper aluminum clad panel price points.

Busbars, transformer components, and switchgear manufacturers regularly specify our panels for this reason.

Architectural Applications

Building facades, decorative panels, and cladding systems need both aesthetic appeal and structural integrity. Our panels deliver the distinctive copper appearance while keeping structural loads manageable.

Industrial Equipment

Heat exchangers, electrode plates, and conductive components in chemical processing equipment withstand harsh environments. Our excellent corrosion resistance, particularly in marine and industrial settings, ensures long service life.

Application Industries

Our Factory

Our Patents and Honors

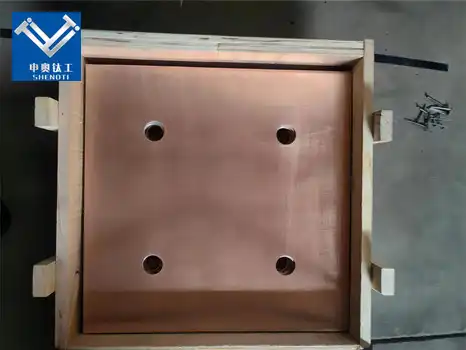

Our Packaging

Frequently Asked Questions

What decides the last item for my project?

Three essential components: current metal advertise rates, your detail prerequisites (thickness, measure, cladding proportion), and arrange volume. We calculate cites based on real-time LME/SHFE lists furthermore our handling premium.

How does your holding prepare vary from copper plating?

Our dangerous welding makes a genuine metallurgical bond all through the interface. Not at all like lean plating that can wear or peel, this holding withstands overwhelming machining, tall streams, and mechanical push without separation.

Can I weld these boards in my existing creation setup?

Yes. Our boards work with TIG, MIG, and laser welding strategies. You'll require to alter parameters marginally to account for distinctive dissolving focuses, but standard hardware handles the work well.

What copper-to-aluminum proportion ought to I specify?

The 20:80 proportion (by volume) speaks to our most prevalent arrangement, adjusting conductivity and fetched. If you require higher conductivity, consider 30:70. For greatest weight investment funds, 10:90 works well for lower-current applications.

How do your boards perform beneath raised temperatures?

The metallurgical bond remains steady up to 300°C. For nonstop operation, we suggest remaining underneath this edge to anticipate intermetallic compound arrangement at the interface.

What quality measures do your boards meet?

We comply with ASTM B-898 and GB/T industry benchmarks for interfacial shear quality, guaranteeing your boards meet universal quality desires.

Our Commitment to Your Success

We've built our reputation over seventeen years by focusing on what matters most: your project success.

Our experienced technical team works directly with you to understand your requirements. We're not just suppliers; we're partners in solving your engineering challenges.

Whether you need small test batches or large production runs, our flexible manufacturing capacity delivers on time. Our comprehensive quality management system ensures every panel meets specifications consistently.
