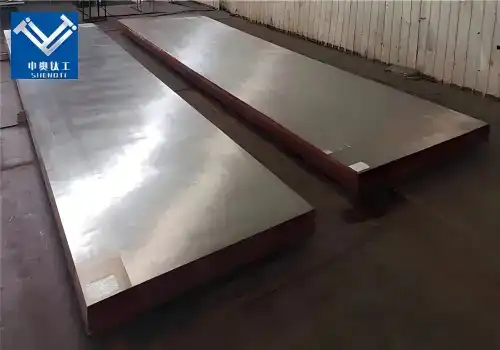

Nickel titanium clad plate
Cladding Thickness:1-10 mm
Plate Thickness:5-50 mm
Width:Up to 2500 mm
Length:Up to 6000 mm
Tensile Strength:≥300 MPa
Bonding Strength:≥150 MPa
Corrosion Resistance:Excellent (Acids, Alkaline, Seawater)
Manufacturing Technique:Explosive Welding
Certification:ISO 9001, ASTM B898, Customer-specific
Nickel Titanium Clad Plate: Enterprise-Grade Composite Solution
When your industrial processes demand both superior corrosion resistance and structural integrity, Nickel titanium clad plate delivers exceptional performance. At Baoji City ShenAo Metal Materials Co., Ltd., we manufacture this advanced bi-metal composite through mature explosive welding technology, achieving bonding strength ≥150 MPa. Our plates feature customizable dimensions up to 2500mm width and 6000mm length, with tensile strength ≥300 MPa. Since 2008, we've been producing these composite materials in China's Titanium Valley, serving hundreds of non-ferrous metal equipment manufacturers with reliable delivery and strict quality standards that meet ISO 9001 and ASTM B898 certifications.
What Makes Nickel Titanium Clad Plate Essential for Your Operations?
This composite fabric tackles a basic designing challenge you confront daily.
Pure nickel offers extraordinary resistance to antacid situations. But its tall fetched makes large-scale applications monetarily prohibitive.
Titanium gives fabulous chloride resistance. However it may underperform in concentrated caustic conditions.
By metallurgically holding nickel (N6 or Ni201) to a titanium substrate (Gr1 or Gr2), you get the best of both metals. The molecular-level bond anticipates galvanic erosion. You decrease fabric costs altogether compared to strong nickel components.
This isn't basic plating. Our dangerous welding prepare makes an atomic-level union between layers. The result? A bound together fabric that performs dependably beneath extraordinary conditions.
  |
 |
 |
Technical Specifications
|
Parameter
|
Specification
|
|
Base Material
|
Nickel, Titanium
|
|
Cladding Thickness
|
1-10 mm
|
|
Plate Thickness
|
5-50 mm
|
|
Width
|
Up to 2500 mm
|
|
Length
|
Up to 6000 mm
|
|
Tensile Strength
|
≥300 MPa
|
|
Bonding Strength
|
≥150 MPa
|
|
Corrosion Resistance
|
Excellent (Acids, Alkaline, Seawater)
|
|
Manufacturing Technique
|
Explosive Welding
|
|
Certification
|
ISO 9001, ASTM B898
|
Where You Need This Material Most?
Chlor-Alkali Industry
Your ionic membrane electrolyzers face constant exposure to concentrated caustic soda. Traditional materials degrade rapidly. Nickel titanium clad plate provides the chemical resistance you need for evaporators and electrolytic cells. The nickel surface handles NaOH concentrations that would destroy other alloys.
Marine Engineering
Offshore desalination demands materials that withstand both seawater and chemical treatments. You need reliability in heat exchangers and riser protectors. The titanium base resists seawater corrosion. The nickel cladding addresses specific bio-fouling challenges and chemical injection processes.
Petrochemical Processing
High-pressure reactors and heat exchangers in your facilities handle aggressive media. Chlorides and hydrogen create unique challenges. This composite delivers surface passivity from nickel combined with titanium's chloride pitting resistance and structural strength.
 |
 |
 |
 |
 |
 |
 |
Product production process
Why Partner with ShenAo Metal Materials?
17 A long time of Fabricating Excellence
We've went through about two decades culminating our hazardous welding strategy. Each plate meets our thorough quality guidelines. You advantage from our involvement working with assorted client requirements.
Customization for Your Correct Needs
No two applications are indistinguishable. We give custom fitted details coordinating your handle conditions. Whether you require little test clusters or expansive generation runs, we adjust to your requirements.
Technical Advancement You Can Trust
Our R&D group works closely with clients. We get it your real-world challenges. This drives nonstop advancement in our forms and item performance.
Reliable Supply Chain
Located in Baoji High-tech Mechanical Advancement Zone, we use solid territorial assets. Our built up generation and quality administration frameworks guarantee opportune conveyance. You won't confront unforeseen delays.
 |
 |
 |
 |
 |
 |
 |
 |
 |
Application Industries
 |
 |
 |
 |
 |
 |
 |
 |
Our Factory
Our Patents and Honors
Our Packaging
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Frequently Asked Questions
What is the typical lead time for custom orders?
Lead times vary based on specifications and quantities. We prioritize transparent communication about production schedules. Contact us with your requirements for accurate delivery estimates.
Can you provide material certificates?
Yes. We supply complete material traceability documentation, including chemical composition analysis, mechanical property test reports, and bonding strength verification. All products comply with ISO 9001 and ASTM B898 standards.
How do I determine the right cladding thickness?
This depends on your corrosion environment and expected service life. Our technical team analyzes your process conditions. We recommend optimal thickness ratios based on 17 years of field data.
What sizes are available?
We manufacture plates up to 2500mm wide and 6000mm long. Thickness ranges from 5-50mm total, with cladding layers from 1-10mm. Custom dimensions are available for specific project requirements.
Is explosive welding safe and reliable?
Absolutely. Explosive welding is a mature technology producing superior metallurgical bonds. Our controlled process creates molecular-level adhesion stronger than many traditional welding methods. The bonding strength exceeds 150 MPa consistently.
Contact Us
Ready to discuss your project requirements with Nickel titanium clad plate? Email us at zh@baojiti.com.cn for technical specifications and quotations today.
