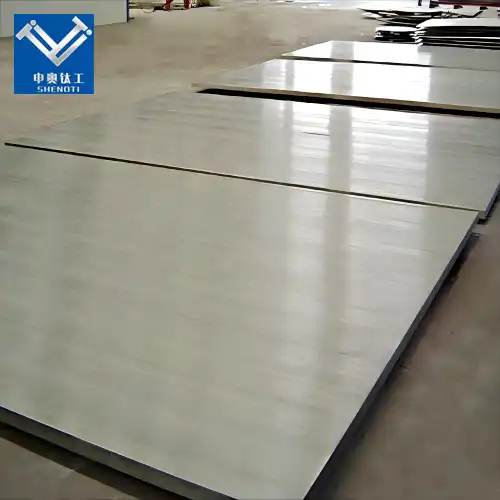

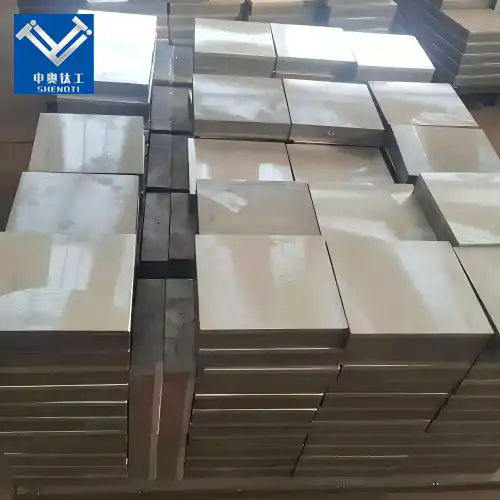

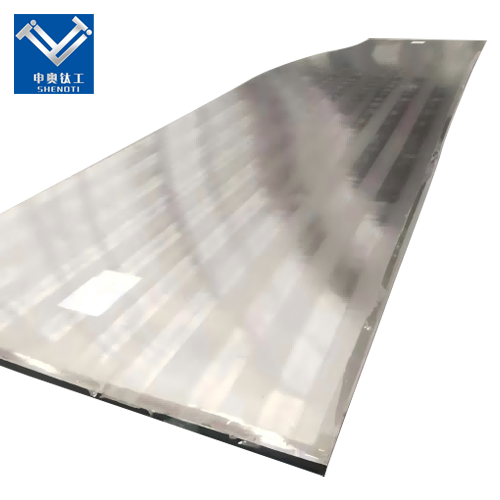

Titanium Stainless Steel Clad Plate: High-Performance Bimetallic Composite Solution

Baoji City ShenAo Metal Materials offers premium Titanium stainless steel clad plate manufactured through advanced explosive welding technology. Our composite plates feature a bonding strength of ≥200 MPa, combining titanium Gr1/Gr2 cladding (1-10mm) with stainless steel 304/316 base layers (5-50mm). Operating reliably from -200°C to 600°C, these plates deliver exceptional corrosion resistance in acidic, alkaline, and seawater environments. With 17 years of production excellence and customizable dimensions up to 4m x 10m, we solve your cost-performance challenges by reducing material expenses by 30-40% compared to solid titanium while maintaining superior mechanical integrity for demanding industrial applications.

This bimetallic solution addresses a critical engineering challenge. You need corrosion resistance but can't justify the cost of pure titanium. Our product provides exactly what your application demands: titanium's chemical immunity on the process-contact surface, backed by stainless steel's structural strength and weldability.

Technical Specifications

Key Applications in Your Industry

Chemical Handling Equipment

Your PTA reactors and warm exchangers confront persistent attack from hot acidic corrosive and chloride-induced push erosion. Our plates stand up to these challenges whereas supporting the basic loads your vessels require.

Marine Designing Infrastructure

Desalination plant vanishing chambers and seaward stages request materials that withstand seawater erosion inconclusively. The titanium cladding gives this insusceptibility whereas the stainless steel base conveys the mechanical properties you require for large-scale structures.

Power Generation Systems

Flue Gas Desulfurization systems create some of the most corrosive industrial environments. Sulfuric and nitric acid condensates quickly destroy conventional materials. Our Titanium stainless steel clad plate extends your infrastructure service life significantly, reducing replacement cycles and maintenance costs.

Product production process

Why Choose ShenAo Metal Materials?

Demonstrated Unstable Welding Expertise

Since 2008, we've idealized our unstable welding prepare in China's Titanium Valley. Our strategy makes metallurgical bonds surpassing 200 MPa, guaranteeing the cladding never isolates beneath warm cycling or mechanical stress.

Customization for Your Specifications

Every application contrasts. We tailor measurements, cladding thickness proportions, and fabric grades to your correct necessities. Whether you require small-batch testing or large-scale generation, our adaptable fabricating adjusts to your extend timeline.

Quality You Can Verify

Our plates comply with ASTM B898 and ASME SB265 benchmarks. Each bunch experiences thorough holding quality testing, ultrasonic review, and erosion resistance approval some time recently shipment.

17 A long time of Industry Trust

Hundreds of gear producers and electrochemical undertakings depend on our materials. Our notoriety stems from reliable quality, not promoting guarantees.

Manufacturing Excellence

We combine explosive welding with post-treatment rolling to optimize the bond interface. This hybrid approach gives you:

· Superior bond strength across the entire plate surface

· Refined grain structure at the interface zone

· Dimensional accuracy for direct fabrication use

· Minimal distortion for easier forming and welding

Our location in Baoji provides direct access to China's premier titanium resources, ensuring material traceability and cost advantages we pass to you.

​​​​

​​​​

​​​​

​​​​

​​​​

​​​​

​​

​​​​

​​​​

Application Industries

​​​​​​​​​​​​​​​	​​​​​​​​​​​​​​​​	​​​​​​​​​​​​​​​​	​​​​​​​​​​​​​​​​
​​​​​​​​​​​​​​	​​​​​​​​​​​​​​	​​​​​​​​​​​​​​	​​​​​​​​​​​​​​

Our Factory
​​​​​​​​​​​​​​​​​

Our Patents and Honors​​​​​​​​​​​​

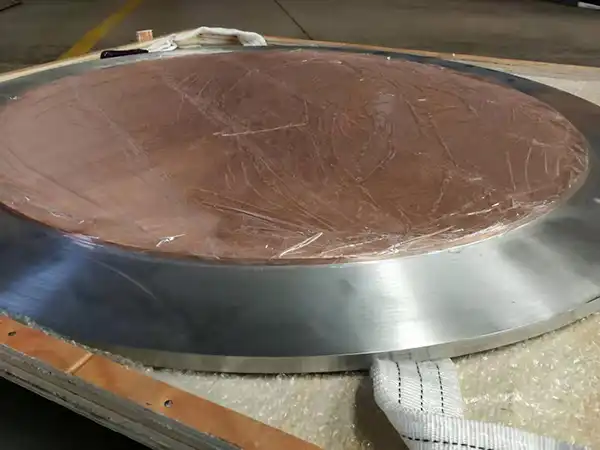

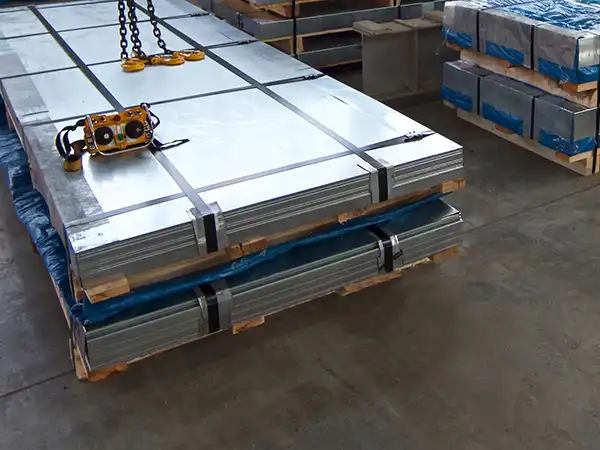

​​​​Our Packaging

​​​​	​​​​	​​​​	​​​​	​​​​
​​​	​​​	​​​	​​	​​​​​​​​​​

Frequently Asked Questions

What holding quality can I expect?

Our standard detail ensures ≥200 MPa, essentially surpassing the ASTM A264 least of 137 MPa. Most generation bunches accomplish 210-230 MPa.

Can I weld these plates like standard stainless steel?

Yes, but you'll require move welding methods. The stainless steel side welds customarily. The titanium side requires titanium or specialized nickel-based filler metals to avoid carbon migration.

How does hazardous welding compare to hot rolling?

Explosive welding exceeds expectations for thick plates and different materials like titanium-stainless combinations. It makes more grounded bonds for your requesting applications compared to hot rolling methods.

Will the cladding keep up erosion resistance after bonding?

Absolutely. Our post-weld warm treatment reestablishes the ideal microstructure in both materials, guaranteeing full erosion resistance per plan specifications.

What's the normal cladding-to-base thickness ratio?

We suggest 10-20% cladding proportion for most applications. For case, a 2mm titanium layer on a 15mm stainless base gives amazing execution and fetched adjust.

Do you provide material certifications?

Yes. Every shipment includes mill test reports, chemical composition analysis, mechanical property certificates, and bond strength test data.

Contact Us

Ready to solve your corrosion challenges with Titanium stainless steel clad plate? Email us your specifications at zh@baojiti.com.cn and receive a customized solution proposal within 24 hours.
