Ir-Ta Titanium Anode for Electroplating

​​​​​​​r-Ta Titanium Anode for Electroplating

In various decorative and functional electroplating processes, the catalytic activity, dimensional stability, and impurity control capability of the anode directly affect the stability of the plating bath, the quality of the deposit, and the maintenance cost of the production line. Our Ir-Ta Titanium Anode for Electroplating at Baoji City ShenAo Metal Materials Co., Ltd. is designed specifically to replace traditional soluble anodes and lead alloy anodes, enabling efficient and clean electroplating. It uses Grade 1 or Grade 2 pure titanium as the substrate, with an iridium-tantalum mixed metal oxide catalytic coating on the surface. The coating maintains stable oxygen evolution catalytic activity in strongly acidic plating baths (such as chromium plating, nickel plating, zinc plating, and anodizing solutions), providing uniform current distribution. The anode maintains dimensional stability during operation, generates minimal sludge, and minimizes the risk of bath contamination, making it suitable for continuous electroplating lines, rack plating, barrel plating, and other electroplating processes, serving as a reliable electrode solution for improving deposit quality and reducing operation and maintenance costs.

This product is for B2B Industrial Use Only. Operators should follow relevant chemical safety protocols and electroplating operation standards.

 ​​​​​​​

Technical Specifications

Why Choose Our Titanium Anodes?

• Exceptional Durability of Iridium-Tantalum Coating in Strong Acid Baths
  Chromium plating baths, acidic nickel plating baths, and anodizing solutions are all strongly acidic systems. Traditional anodes (such as lead alloys) exhibit relatively high corrosion rates during long-term operation, leading to changes in electrode spacing and sludge contamination. Our iridium-tantalum coating exhibits a very low corrosion rate under strongly acidic, high-potential conditions, maintaining coating structural integrity during long-term immersion and continuous electroplating operation, without significant activity decay or substrate exposure caused by sustained attack from the acidic medium, providing long-cycle stable operation assurance for electroplating lines.
• Insoluble Anode Significantly Reducing Bath Contamination
  Traditional soluble metal anodes introduce impurity elements and generate anode sludge during dissolution, affecting deposit appearance and quality, and increasing the frequency of bath filtration and maintenance. Our titanium anode operates as an insoluble anode without self-dissolution, generates minimal sludge, and minimizes the risk of bath contamination, contributing to extended bath service life, reduced waste solution discharge, and improved first-pass yield of plated parts.
• Stable Dimensions Ensuring Uniform Electrode Spacing and Current Distribution
  Lead anodes and graphite anodes gradually corrode, deform, or expand during electroplating, causing changes in the anode-cathode gap and affecting current distribution uniformity and cell voltage stability. Our titanium anode maintains stable dimensions and shape throughout its service life, ensuring consistent spacing for each electrode pair, providing the foundation for uniform deposition across all areas of the plated part and stable cell voltage control.
• Multi-Form Customization for Different Plating Lines

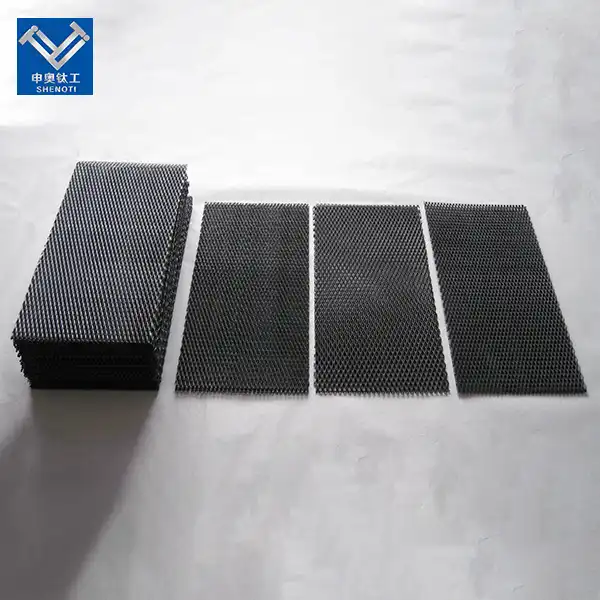

  We can supply plate, mesh, rod, and tubular anodes based on your tank dimensions, rack arrangement, and process requirements. Plate anodes are suitable for conventional rack plating and continuous plating lines; mesh anodes are suitable for tanks requiring high open area ratios and gas venting; rod anodes are suitable for deep-hole and irregular workpiece interior plating. Anode profiles, bus bar interfaces, and mounting methods can all be customized for convenient integration with existing production lines.

Real-World Applications

• Automotive Component Electroplating: Used in functional chromium, nickel, and zinc plating lines for automotive interior and exterior trim, engine components, fasteners, and braking system assemblies, covering corrosion-resistant and wear-resistant coating electroplating processes.
• Electronic Component and Connector Electroplating: Used in precious metal and functional coating plating lines for connectors, terminals, lead frames, and semiconductor packaging substrates, providing a high-purity insoluble anode solution for precision electroplating.
• Sanitary Ware and Consumer Goods Electroplating: Used in decorative chromium and nickel plating lines for faucets, shower heads, valves, and household decorative items, covering multi-layer nickel-chromium electroplating and alloy electroplating processes, ensuring product appearance consistency and corrosion resistance.
• Industrial Equipment and Mold Electroplating: Used in hard chrome plating lines for industrial components such as hydraulic cylinders, piston rods, rollers, and molds, providing stable current output and long-term dimensional reliability for wear-resistant and repair electroplating.

The ShenAo Advantage

18 Years of Fabricating Excellence

Since 2008, we've specialized in valuable metal coated titanium anodes from our office in Baoji's "China Titanium Valley." Our develop bimetallic hazardous welding innovation and progressed coating forms provide items you can trust.

Customization for Your Correct Needs

Every generation line is diverse. We give custom fitted arrangements coordinating your particular current thickness necessities, electrolyte composition, and operational parameters. Whether you require little bunch testing or full-scale generation amounts, we convey on time.

Cost-Effective Lifecycle Management

When coating exhaustion happens, you do not dispose of the whole anode. Our proficient recoating benefit strips the ancient oxide layer, sandblasts the substrate, and reapplies new MMO coating. This expands resource life and decreases your add up to taken a toll of proprietorship considerably.

Frequently Asked Questions

Q: What are the main advantages of iridium-tantalum coated titanium anodes compared to traditional lead alloy anodes in chromium plating lines?
A: The main advantages are reflected in three aspects: first, significantly reduced sludge generation—lead anodes continuously dissolve in chromium plating baths and generate lead chromate sludge, contaminating the bath and clogging anode bags, whereas titanium anodes generate minimal sludge; second, stable dimensions ensuring consistent electrode spacing—lead anodes gradually corrode and deform, while titanium anodes maintain dimensional stability throughout their service life; third, lower risk of bath contamination—titanium anodes do not dissolve lead ions, helping maintain the chemical balance of the bath and deposit quality.

Q: What are the requirements for coating selection in different electroplating processes?
A: Iridium-tantalum coatings exhibit excellent chemical stability and oxygen evolution catalytic activity in strongly acidic plating baths (such as chromium plating, acidic nickel plating, and anodizing), making them the preferred coating solution for these processes. If your electroplating process involves high chloride ion concentrations with the chlorine evolution reaction as the primary reaction (such as chloride-based zinc plating), ruthenium-iridium coatings may be considered to achieve a lower chlorine evolution overpotential. You can provide your bath formulation and operating parameters, and our engineers will recommend a matched solution.

Q: How is the current density of titanium anodes selected based on the electroplating process?
A: The selection of current density depends on the plating type, bath composition, workpiece shape, and line speed. Decorative chromium plating typically operates in the range of 500–1,500 A/m², hard chrome plating can reach 1,500–3,000 A/m², and acidic nickel and zinc plating typically operate at 200–1,000 A/m². Excessively high current density can accelerate coating consumption, while excessively low current density affects production capacity and deposit quality. We can provide matched current density recommendations based on your specific process parameters.

Q: How should anodes be handled when the coating reaches the end of its service life?
A: The titanium substrate remains stable in the electroplating environment. The old coating can be chemically stripped, and once the substrate passes inspection, it can be recoated to restore performance to new-anode levels. We offer a full-service process including incoming inspection of used anodes, coating stripping, substrate treatment, and recoating, helping you reduce long-term electrode renewal costs.
